Rubber vs Hybrid vs Polyurethane Air Hose: Which Fits?

Affiliate disclosure: As an Amazon Associate I earn from qualifying purchases. This article may contain affiliate links, and Bay & Bench may earn a commission at no extra cost to you. Read our full Affiliate Disclosure.

The rubber vs hybrid vs polyurethane air hose choice is mostly about how the hose behaves between the compressor and your hand. Rubber usually feels substantial and lies flat. Hybrid polymer tends to be lighter while retaining a relaxed, flexible feel. Polyurethane can be noticeably light and compact, which suits trim tools and small work areas, though some versions feel springier underfoot.

Material alone never tells the whole story. Hose diameter, length, reinforcement, cover compound, pressure rating, fittings, and temperature range vary from one model to another. A well made hose of any of these materials can beat a poorly matched alternative. This guide sorts the practical differences, then turns them into a buying decision for vehicle work, woodworking, inflation, and general garage jobs.

Quick answer

Choose rubber when you want a hose that lies flat and tolerates rough floor use, and you do not mind extra weight. Choose hybrid polymer for a lighter general purpose garage hose with easy coiling. Choose polyurethane for small pneumatic tools when low drag and compact storage matter most. Verify the exact pressure, temperature, chemical, and fitting specifications before buying.

How rubber vs hybrid vs polyurethane air hose materials differ

There is no automatic winner. The better material is the one that creates the fewest annoyances during the job you repeat. A vehicle bay rewards a hose that stays on the floor. A finish bench rewards low pull at the tool. A cold detached garage exposes stiffness that never appears in a warm store.

Decision point	Rubber	Hybrid polymer	Polyurethane
Typical feel	Dense, soft, planted	Supple with moderate weight	Light, smooth, compact
Floor behavior	Often lies flat well	Usually easy to straighten	Can feel lively in a long straight run
Tool drag	Often higher; verify the listed hose weight	Middle ground	Often lowest
Cold use	Depends heavily on compound	Many garage models target cold flexibility	Rating and formulation vary
Storage	Needs a broad hanger or reel	Coils without much effort	Small coil or recoil format
Good starting use	Vehicle and floor work	One hose for mixed garage jobs	Nailers and light bench tools

Treat that table as a feel guide, not a specification sheet. Parker, for example, lists an EPDM tube, a 300 PSI maximum working pressure, and a range from minus 40 to 212 degrees Fahrenheit for one GST II rubber air hose. Another rubber hose may use a different compound and a much narrower range. The label on the package should win over a broad material rule.

Begin with the route the hose must travel

Walk from the compressor to each normal work spot. Measure around the car, not through it, and include the few feet needed to move the tool without stretching the line. A 25 foot hose can be calmer than a 50 foot hose if it reaches everything. Excess length adds weight, tangles, and more cover to drag across edges.

Notice where the line crosses a doorway, turns around a cabinet, or passes the vehicle tire. Rubber can stay planted at a crossing but feels heavy when pulled around the whole bay. Polyurethane is easier to carry, yet a very light line may follow the tool and form loops in the aisle. Hybrid often lands between those behaviors.

Plot that path beside the garage workshop layout guide. The route may reveal that a better compressor position or a wall drop removes 20 feet of hose. Material cannot rescue a line that is always stretched across the busiest walking route.

Rubber stays planted during rough vehicle work

Rubber earns fans because it feels settled. A broad loop tends to lie where it is placed instead of trying to return to a tight coil. Around a wheel, that can mean less tug on an impact wrench and fewer loops sliding under the user’s feet. Its thick cover also feels at home on ordinary concrete.

The cost is weight. Fifty feet of substantial rubber follows every trip around the vehicle, and the last ten feet can pull at a compact tool. It also occupies more room on a hook or reel. That does not make rubber outdated. It makes it better suited to a main line that stays near the floor than a tiny hose carried between rooms.

Vehicle work still depends on enough delivered air. Use the garage air compressor size guide to compare tool demand with compressor output, then check the hose inside diameter. A thick cover can look capable while hiding a bore that is too small for the run.

Heavy black rubber air hose connected to a garage impact wrench — Rubber feels substantial and tends to stay put during vehicle work, though its weight follows the user around the bay.

Hybrid polymer is the easy general purpose compromise

Hybrid polymer hoses are blends, so the name describes a family rather than one recipe. Good examples combine low weight, easy coiling, and a soft feel on the floor. That mix makes sense in a garage where the same hose inflates tires, runs a nailer, and occasionally feeds an impact wrench.

Do not assume every hybrid hose behaves the same. Wall thickness, reinforcement, outside cover, and fittings can change the experience. Flexzilla lists its SmartFlex hybrid polymer air hose with a 300 PSI working pressure and a stated temperature range from minus 30 to 140 degrees Fahrenheit. Those numbers describe that line, not every green or hybrid hose on a marketplace page.

Hybrid is my first place to look when one hose must cover mixed home use. It is light enough to move without a fight and usually calm enough for floor work. Still, compare the actual weight and cold rating. A vague claim such as all weather tells less than two published temperatures.

Flexible green hybrid polymer air hose on a cold garage floor — A good hybrid hose stays manageable in a cool garage, but the published temperature range still needs checking.

Polyurethane keeps a small air tool feeling light

A finish nailer, pin nailer, airbrush, or blow gun does not need a heavy tail. Polyurethane can make that connection feel almost like an electrical cord. It stores in a tight space and works especially well as a short bench hose or tool whip. Recoil versions suit stations where the tool returns to one spot.

Light weight has another side. A long straight polyurethane line may retain more memory or move when pressure changes, depending on its construction. A tight recoil hose can pull constantly toward its stored shape. That spring force is useful over a bench and tiresome when precise tool placement matters.

Parker lists its industrial 83FR polyurethane hose with low weight, abrasion resistance, and a compact bend radius. It also publishes model specific pressure and temperature limits. Consumer garage hoses differ, but the bulletin illustrates why polyurethane appears in industrial pneumatic and robotic applications where routing and repeated movement matter.

Light blue polyurethane air hose connected to a finish nailer — A slim polyurethane hose puts less drag on a small nailer and stores in a compact coil near the bench.

Cold weather can change the winner by breakfast

A hose that coils politely at 70 degrees can become a stubborn ring after a winter night. This is where casual material rankings break down. There are cold rated rubber hoses, flexible hybrid formulas, and polyurethane products with broad ranges. There are also cheap versions of each that turn awkward well above their advertised minimum.

Use the manufacturer’s operating range as the first screen, then read owner reports for handling near your real temperature. A pressure rating may fall as heat rises, and low temperature flexibility is not the same as permission to bend a frozen hose sharply. Bring the line up to a safe working temperature if its manual calls for it.

Keep the stored coil broad and relaxed. Hanging a cold hose from one small nail creates a sharp bend at the same spot every day. Put the compressor and hose in a zone planned through the garage workshop zones guide, away from the overhead door seal where weather and traffic meet.

Heat, oil, and chemicals need exact compatibility data

Air hose on a garage floor may touch motor oil, cleaners, paint residue, sunlight near an open door, and hot metal. A generic material label does not promise resistance to all of them. The inner tube and outer cover can use different compounds, and reinforcement adds another layer that shoppers cannot see.

Read the media, temperature, and cover resistance information for the exact stock number. A rubber tube may resist oil while its outer cover has another rating. One polyurethane formulation can tolerate abrasion nicely but react poorly to a solvent. Hybrid recipes are proprietary blends, which makes model data more useful than guesses based on color.

Wipe contamination off soon and inspect the area after cleaning. Swelling, softness, cracking, discoloration, or a sticky surface are reasons to stop using the line. Do not wash an unknown chemical deeper into the hose cover, and do not run the hose across hot exhaust or fresh welding debris.

Coil memory and drag show up in ordinary jobs

Shopping pages talk about flexibility. The garage exposes memory. Memory is the hose’s urge to return to the shape it held in storage. A line with strong memory forms loops that catch a caster or rub the car. A heavy line with little memory may lie flat but make the tool feel tethered.

Think about which end moves. At a fixed tire inflator, a moderate coil is harmless. During cabinet assembly, the tool crosses the workpiece and a light hose matters. While removing wheels, the hose rests mostly on the floor, so planted behavior matters more than compact storage.

A short whip can separate those needs. Keep a full size main hose for airflow, then add a light, compatible whip near the tool. Every extra joint adds another possible leak and restriction, so match the coupler family and inspect the connections. Store those small fittings with the system described in the garage tool storage guide.

Diameter and fittings can outweigh the material choice

Two hoses can share the same outside appearance and deliver very different airflow. Inside diameter creates the passage. Length, couplers, regulator, filter, and reel add resistance. A light polyurethane hose that is too narrow may starve a grinder, while a larger hybrid line supplies it without trouble.

Start with the tool maker’s required pressure, air consumption, and minimum hose size. Compare those numbers with compressor output at the same pressure. Then look at the full route, including a reel leader and whip. Static gauge pressure with the trigger released does not show the drop that appears while air moves.

Do not raise regulator pressure beyond any component rating to hide a restriction. Fix the narrow fitting, excessive length, kink, leak, or undersized compressor. Material affects handling; the bore and fittings decide whether enough air gets through.

A reel changes how every material feels

A wall reel removes loose coils from the floor, but its drum, swivel, leader hose, and bend radius become part of the system. Thick rubber needs enough drum space and should not be forced into a tight wrap. A very light polyurethane line may wind compactly but can feel springy at full extension. Hybrid is common on garage reels because it balances the two.

Check whether the reel ships with a hose or accepts a replacement. Some assemblies are designed around one length and outside diameter. Confirm the working pressure of the reel and swivel, not just the hose. Mount the unit where the line pulls mostly straight rather than scraping a cabinet corner.

Keep the retracting path out of the main garage aisle. Guide a retractable hose back by hand and set the stop so the coupler cannot strike the housing. A reel solves storage only when its location also suits the work.

Inspect the cover, ends, and any repair fitting

Before use, look along the full hose. Cuts, exposed reinforcement, bubbles, soft spots, crushed areas, loose crimps, bent plugs, or a changed section near the coupler deserve attention. Depressurize the system before touching a connection. Tape over a damaged cover hides evidence; it does not restore the rated assembly.

Some hoses are sold as field repairable and use a maker approved fitting. Others rely on factory crimps and should be replaced as an assembly. Follow the instructions for that model. A random barb and worm clamp may fit physically without being suitable for compressed air pressure and impulse.

The OSHA construction rule for pneumatic tools says manufacturer safe operating pressure for hoses and fittings must not be exceeded. Home garage users are not reading it as a product manual, but the principle is sensible: the lowest rated part sets the ceiling. Inspect the hose, connectors, regulator, and tool as one system.

A two hose setup can be simpler than one universal hose

One main 3/8 inch rubber or hybrid hose can cover the floor route and higher demand tools. A short light polyurethane hose can stay at the assembly bench for nailers and a blow gun. That pair often feels better than dragging one 50 foot coil into every task.

Position the bench before fixing either route. The workbench placement guide accounts for doors, car clearance, outlets, and stock movement. A five foot change in bench location can remove a troublesome hose crossing and may save more frustration than changing material.

Choose the hose by its main job and weakest condition

For vehicle service on a concrete floor, start with rubber or a substantial hybrid. Compare weight if the hose must reach the driveway. For mixed garage use, a flexible hybrid is the most sensible first candidate. For trim work and compact bench tools, polyurethane deserves a close look because low drag is easy to feel.

Then test the weakest condition. That might be January temperature, a 50 foot route, a hungry impact wrench, or repeated contact with a rough threshold. Read the exact pressure and temperature range, check chemical compatibility, confirm fitting profile, and compare the total assembled weight.

The best air hose material reaches the work, supplies the tool, stores without a fight, and survives the surfaces it touches. Once those facts are clear, the material choice is usually straightforward.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Read the current manual for the exact product you are considering. Confirm its assembled dimensions, rated capacity, mounting requirements, included hardware, working clearances, warranty, and any limits that apply to your wall, floor, electrical circuit, or garage layout.

Frequently asked questions

Is rubber or hybrid air hose better for a home garage?

Rubber is a good choice when the hose spends most of its time on the floor and low coil memory matters more than weight. Hybrid is easier to carry and store for mixed jobs. Compare the exact cold rating, outside cover, working pressure, and weight because both categories contain very different models.

Does polyurethane air hose kink more easily?

It depends on the hose construction, wall thickness, bend radius, and storage shape. Polyurethane can have a compact bend radius and strong abrasion resistance, but a light line may retain coil memory or fold at a sharp corner. Follow the maker bend guidance and do not pull any hose tight around an edge.

Which air hose material is best in cold weather?

Use the published minimum operating temperature for the exact model. Many hybrid hoses are sold for cold flexibility, yet cold rated rubber and polyurethane products also exist. Let the line warm if required, avoid sharp bends while it is stiff, and replace a cover that cracks after cold use.

Can I use a polyurethane hose with an impact wrench?

Yes, if its inside diameter, length, pressure rating, fittings, and airflow support the wrench. Material does not set flow by itself. Many light polyurethane hoses are narrow and better suited to nailers, so check the tool manual and measure pressure at the inlet while the wrench runs.

How should an air hose be stored in a garage?

Depressurize it as directed, wipe it clean, and store it in broad relaxed coils on a suitable hanger or compatible reel. Keep it away from sunlight, heat, sharp edges, oil spills, and vehicle tires. Inspect both ends and the cover before the next use.

September 12, 2026

Where to Mount an Air Hose Reel in a Garage: 5 Checks

Figuring out where to mount an air hose reel starts with the jobs at the far end of the hose, not with an empty patch of wall. A tidy reel can still fail if the hose rubs a vehicle or reaches the driveway only when stretched tight.

A good location covers the workbench and vehicle, stays clear of the garage door, connects to sound structure, and gives you a controlled return path. There is no standard mounting height or universal fastener list that works for every reel and every wall. The exact model manual and the building structure decide those details.

Quick answer

Mount the reel where a length of hose reaches the farthest regular job with slack, while the reel and hose remain clear of the garage door, vehicle, doors, cabinets, and walking routes. A central side wall often works well. Use only a wall, ceiling, post, or backing assembly approved for the exact reel, follow its mounting pattern, and test the pull and controlled return before settling on the location.

Begin at the farthest job, then work backward

List the places that need air during an ordinary month. Common stops include the main workbench, each side of the parked vehicle, the driveway, a mower near the door, and a finishing table. Ignore the one project that might happen someday. A permanent reel should make frequent work easier rather than chase every corner of the property.

Measure the hose path, not a straight line through cabinets and cars. Walk the route that the hose would take around the front of a vehicle, past a bench leg, and through the open garage door. Add a modest amount of slack so the coupler is not carrying a constant side pull. Then compare that result with the usable tool-side hose length stated for the reel. The bumper position and the wraps that must remain on the drum may reduce usable reach. Do not count the supply-side leader hose toward the tool path.

This is easier after the room has working zones. The garage workshop zones guide helps separate parking, storage, and project space before a reel claims part of a wall. Mark the farthest regular task on the floor with tape. If two possible reel locations both reach it, choose between them using the next checks rather than buying a longer hose immediately.

Homeowner testing air hose reach before choosing a permanent reel location — A temporary mockup and loose hose reveal awkward corners before the first mounting hole is drilled.

Where to mount an air hose reel in five common garage zones

Most home garages offer five realistic zones. Each can work, but the tradeoffs are quite different once the door and car start moving.

Possible location	Why it can work	Main check before drilling	Best fit
Central side wall	Balanced reach to bench, car, and driveway	Car door, cabinet, and walking clearance	Mixed garage work
Wall beside workbench	Short tool connection and easy inspection	Reach to the far side of the car	Bench focused projects
Wall near garage opening	Easy access to driveway work	Door track, weather, and vehicle corner	Tires and outdoor equipment
Ceiling or overhead framing	Open wall space and broad pull direction	Approved overhead support and service access	Open center bay
Structural post or partition	Good central position in a divided shop	Post construction and swing clearance	Dedicated workshop bay

A central side wall is the most forgiving starting point in many two car garages. The hose can fan toward the bench, vehicle, and open door without hanging above the car. Still, it only works if the reel body does not crowd a car door or narrow the route into the house. Use the garage workshop layout guide to test the whole room rather than judging one clear photograph.

Mounting beside the compressor is convenient for the inlet line, but compressor location and reel location solve different problems. The compressor needs ventilation, electrical access, drainage access, and room for service. The reel needs reach and a clean pull. A short leader hose can connect two sensible locations. Do not force them together just to save a few feet of inlet line.

Wall mounting is usually easier to live with

A wall mounted reel stays visible. You can inspect the bracket, swivel, hose, and stop without climbing. The user can also guide the hose back while standing on the floor. Those small conveniences matter because a retractable reel works best when it is treated like equipment, not forgotten decoration.

A fixed wall bracket favors pulls that leave mostly in front of the guide. A swing bracket may cover a wider angle, but it creates a moving envelope of its own. Confirm that the bracket is made for the reel, then swing it through the full arc with nearby drawers, shelves, light switches, and vehicle mirrors in place. The reel should not become a heavy doorstop.

Workbench placement affects the answer. A reel mounted behind a deep bench may be hard to reach for service, and the hose can drag across workpieces. A location just beyond the bench end often gives a cleaner line. Review where to put a workbench in a garage before committing both fixtures to the same busy wall.

Ceiling mounting trades wall space for harder service

A ceiling location can give an even pull across an open bay. It also keeps the reel body away from cabinets. The downside arrives during installation and maintenance. Every mounting point is overhead, the reel is harder to inspect, and the hose end may hang in the same volume used by a raised hatch, roof rack, or garage door.

Do not assume a reel that can sit on a wall can automatically hang overhead. The manual must allow that orientation, show the correct guide position, and describe the mounting arrangement. Coxreels safety guidance says an overhead reel must not be supported solely by bolts in tension and calls for a safety chain or cable. The exact product manual may add stricter instructions, so follow the document for the reel in front of you.

Service access belongs in the plan too. If normal inspection requires placing a ladder between a parked car and a freezer, the location will be neglected. A lower wall position may be less visually neat and much more usable. When overhead mounting is still the better fit, have uncertain framing or connections reviewed by a qualified installer.

Keep the reel outside every garage door path

The open door is only one position. Panels travel along curved tracks. Rollers move, hinges fold, the opener trolley runs, and the emergency release hangs down. Torsion springs and lift cables need untouched working space. Keep the reel, bracket, leader hose, and pulled hose away from all of it.

Cycle the door while watching from several angles, following the door maker’s safety directions. Park the tallest expected vehicle and open its hatch. Check roof bars, antennas, mirrors, and the arc of each passenger door. A wall that looks empty with the garage vacant may become the tightest point once the family car comes home.

Do not attach the reel to door tracks, opener supports, or another system just because the metal looks stout. Those parts have their own job and approved loads. A nearby structural wall section is easier to reason about. If the door hardware leaves no dependable gap, move the reel rather than improvising a shared bracket.

Make the structure carry the pulling load

A loaded reel does more than hang. Each pull adds leverage to the bracket, and retraction adds repeated movement. Drywall, thin paneling, and a storage cabinet skin are not a complete load path. The mounting points must transfer the reel forces into structure in the way its maker specifies.

Use the paper template or dimensional drawing for the exact model. Confirm the hole pattern before adding a backer. A wood board spanning framing can be useful when it is designed and attached for the load, but a random piece of plywood is not proof of capacity. Wall framing, masonry condition, fastener type, edge distance, and bracket shape all affect the result. This is the point to ask a carpenter, contractor, or engineer when the wall is unusual or concealed.

Reelcraft’s Series RT operating instructions tell installers to use the supplied mounting template for the specific application and to secure that reel with four mounting bolts. That does not make four bolts a rule for every product. It shows why the current manual and its exact pattern come before a shopping list. The structural image here is illustrative rather than a fastener prescription.

Air hose reel bracket mounted on substantial plywood backing across wall framing — Illustrative backing layout only; concealed fasteners are not shown. The exact reel manual and verified wall structure must determine the complete load path.

Treat mounting height as a working variable

There is no magic eye level number. The reel needs to clear normal traffic, yet remain reachable for inspection and controlled hose return. The guide angle should suit the direction of pull. The stop ball should finish where the user can take the hose without jumping, stretching, or leaving a long tail at face height.

Test the height with a cardboard outline the size of the reel. Include the bracket and the space needed to swing or remove a cover. Have the shortest regular user reach toward the hose end with both feet on the floor. Then have the tallest person walk underneath. A comfortable compromise is more useful than a tidy line with the top of the cabinets.

Manufacturer limits still control the final choice. Some manuals state a maximum installation height or restrict a mounting orientation. Others call for the guide arm or bumper stop to be repositioned. Read those instructions before treating a mockup position as approved. Never change spring tension or open a spring housing merely to make a poor location feel better.

Plan the inlet connection before the bracket

The supply side is easy to forget because product photos face the hose outlet toward the camera. Behind the reel, the inlet must connect without kinking, rubbing, or forcing the swivel sideways. Leave room for the fittings, the leader hose, and whatever shutoff or filter arrangement the compressor maker calls for.

The Reelcraft Series RT instructions call for a flexible hose at the input rather than rigid plumbing for that model. A flexible connection can prevent alignment stress, but its size, pressure rating, bend radius, and fittings must match the reel and air system. Do not copy a leader hose from a photograph. Check the reel inlet, compressor outlet, working pressure, and local piping requirements.

A compressor that barely supplies the tool will not improve because the reel sits closer. Flow depends on compressor delivery, hose inside diameter, length, couplers, and restrictions. Our garage air compressor size guide covers that side of the system. Choose reel placement for movement and reach, then size the air path as one connected system.

Point the guide along the real pull direction

A hose lasts longer when it leaves the roller or guide without a sharp sideways bend. Stand at each regular task and look back at the proposed reel. If every pull crosses the edge of the guide, the location or guide orientation needs work. A pivoting bracket can help, though it must remain stable and clear throughout its travel.

Some enclosed reels allow the guide opening or enclosure to be repositioned for wall, ceiling, or side mounting. Reelcraft explains that process for specific enclosed models in its guide opening adjustment note. Use the instructions for your series. Do not rotate a cover or guide by analogy when the manufacturer has not approved it.

Test pulls should be slow and unpressurized until the installation is complete and inspected. Extend the hose toward the bench, both sides of the vehicle, and the driveway. Watch the guide, the bracket, and the leader line. If the reel twists, a fitting contacts the wall, or the hose scrapes a corner, stop and correct the setup before connecting the air supply.

Protect the aisle during use and return

A reel removes stored coils from the floor, but the hose still crosses the room while a tool is running. Pick a location that keeps the working route near a wall or along the edge of a bay when possible. Crossing the only path to the house turns a quick tire check into a trip hazard for everyone else.

Think about the return path before the pull. You should be able to walk the hose back without squeezing between a car and shelving. Keep the fitting in hand and allow the reel to retract at a controlled pace. Do not let the end fly toward the guide. That habit protects the coupler, stop, surrounding paint, and anyone who steps into the garage.

The garage workshop aisle clearance guide can help preserve a usable route around a project. Store blow guns and inflators near the reel without letting them dangle from the coupler. The broader garage tool storage guide offers better homes for those attachments.

Homeowner guiding an air hose slowly back toward a wall mounted reel — Walking the hose back under hand control keeps the end fitting from snapping across the garage.

Use a final location check before installation

A strong candidate passes five tests. It reaches the farthest regular task with slack. It stays outside door and vehicle movement. Its bracket can connect to verified structure exactly as the manual describes. Its inlet has a suitable route. And the user can pull, latch, inspect, and guide the hose home from a steady stance.

Confirm the reel pressure rating, hose size, operating temperature, orientation, mounting pattern, fasteners, guide position, stop location, and service clearance from current documentation. Product families change. Instructions for a similar looking model may not apply. Keep the manual with the compressor records so the next owner knows what was installed.

For many garages, the answer is a central side wall between the workbench and vehicle bay. Sometimes the door, framing, or inlet route makes another position better. Let the mockup and measurements overrule the clean catalog picture. A reel earns its wall space when the hose reaches easily, comes back under control, and disappears from the floor when the job is done.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

Is it better to mount an air hose reel on the wall or ceiling?

A wall usually makes inspection, hose control, and service easier. A ceiling can give broad reach when wall space is scarce, but it needs an approved overhead orientation, verified structure, door and vehicle clearance, and safe service access. Follow the exact reel manual because mounting choices differ by series.

How high should an air hose reel be mounted?

There is no universal height. Place it where the hose end is reachable from the floor, the guide matches the normal pull, the reel clears traffic, and maintenance remains practical. Then check the exact manual for any height or orientation limit. Test a full size cardboard mockup with every regular user.

Can I mount an air hose reel directly to drywall?

Drywall alone is not a suitable structural load path for a hose reel. Use the mounting arrangement required by the manufacturer and suited to verified framing or masonry. A backing board can be part of a sound assembly, but its material, span, attachment, and fasteners need to carry the real pulling loads.

Should the air hose reel be next to the compressor?

Only if that spot also gives good reach and clearance. The compressor location is chosen for ventilation, service, drainage, power, and noise. The reel location is chosen for hose movement. A correctly sized flexible leader can connect separate locations when the reel and compressor manuals allow it.

How do I stop a retractable air hose from whipping back?

Keep control of the hose end and walk it toward the reel while it retracts. Do not release it from across the garage. Stop using a reel that retracts, latches, or guides the hose abnormally. Depressurize the system and follow the manufacturer service instructions rather than opening a spring housing.

September 12, 2026

Garage workshop lighting guide: build layers instead of chasing brightness

A useful garage workshop lighting guide should begin with shadows, not fixture count. One bright lamp in the center can make the floor look impressive while your hands disappear into darkness at the bench. Open garage doors, tall cabinets, your own shoulders, and raised workpieces all interrupt light. A successful room uses several calm sources and a focused task layer.

Plan around what happens in each zone: parking, walking, storage labels, bench work, machine setup, finishing, and cleanup. Then choose fixtures that spread light where it is needed, render colors honestly, suit the garage environment, and can be controlled without turning on the entire room.

Quick answer

Use two lighting layers. Start with evenly spaced, diffused ceiling fixtures for safe movement and general work. Add dedicated task lights at the bench, saw, sharpening area, or inspection surface. Put ceiling rows to either side of the main work line so your body does not cast one deep shadow. Compare lumens, beam distribution, CCT, color quality, dimming, temperature limits, and fixture listing. Install a small sample before committing to the whole ceiling.

Garage workshop lighting guide: the layers at a glance

Layer	Job	Good placement	Common mistake
Ambient	Walking, parking, cleanup, finding storage	Even ceiling rows across active floor area	One central fixture with dark walls
Bench task	Assembly, measuring, repair, hand tools	Forward of the worker or from both sides	Light behind the head
Machine task	Setup lines, controls, cut line inspection	Fixed to illuminate the machine surface safely	Portable lamp and loose cord near moving work
Vertical storage	Labels, cabinets, wall tools	Wide distribution toward the wall face	All light aimed straight at the floor
Inspection	Finish, paint, defects, color decisions	Accurate, controlled light from more than one angle	Judging color under one harsh source

Start by mapping these zones in the garage workshop layout guide. Lighting follows the layout, because a bench moved after wiring can put the user directly between the fixture and the work.

Begin with tasks and surfaces

Write down what you do after sunset. Reading tote labels needs vertical illumination. Sanding a panel needs grazing light that reveals texture. Measuring a pencil line needs contrast at the work surface. Parking needs broad, low-glare coverage, especially near steps and door thresholds.

Note surface colors. A white ceiling and pale walls return more useful light than black cabinets, dark rafters, and a charcoal floor. Dust, fixture aging, and storage that grows toward the ceiling also reduce the light reaching the work. This is why a lumen total alone cannot describe the finished room.

Walk the garage with the door open and closed. The raised door may sit between ceiling fixtures and the workbench. If so, mount task lighting below that shadow plane or locate the bench elsewhere. Never place a fixture where door movement or service work can strike it.

Use two ceiling rows to control body shadows

In many rectangular garages, two rows running with the long dimension create more useful overlap than one bright center row. Place them on either side of the primary standing and work line. When one side is blocked by your body, the other still reaches the surface.

Do not space fixtures by appearance alone. Look at the manufacturer’s photometric information or distribution diagram when available. A fixture with a broad, diffuse pattern can cover a larger area smoothly; a narrow pattern may create bright lanes and dim gaps even with the same lumen rating. Ceiling height changes the spread.

Draw circles or cones on the plan, then verify with a temporary sample. The exact spacing depends on beam distribution, mounting height, surface reflectance, and the work below. The garage lighting calculator gives a starting lumen budget, but the layout turns that budget into usable light.

Two rows of diffused LED fixtures over a garage workshop — Two deliberate rows usually control body shadows better than one intense strip down the center.

Add bench light in front of the worker

A task fixture mounted behind your shoulders lights the back of your head. Place it near the front edge of the bench, above and slightly forward of the normal hand position, or use two sources from opposing sides. Diffusion matters when tools, varnish, or metal reflect a bare LED image.

The task layer should have its own switch. Quick jobs should not require flooding the parking bay, and delicate inspection may benefit from a brighter local setting than the rest of the room. Dimming can help when a reflective surface becomes uncomfortable, provided the fixture and control are compatible.

Keep fixtures, cords, and controls outside clamp paths and material travel. A swinging arm lamp can be convenient for small work, but lock it away from rotating tools and hot or wet processes. Follow product instructions for mounting, clearance, and environment.

Focused task light illuminating a wooden workbench without glare — Task light should reach the front of the bench without placing a bare source in the normal line of sight.

Read lumens and distribution together

Lumens describe the light output leaving a source. They do not guarantee that the workbench receives an even or comfortable level. The U.S. Department of Energy’s LED basics explains that LED products vary in efficacy, distribution, color, lifetime, and other performance characteristics. Compare the complete fixture, not watts alone.

A high-lumen shop light can waste output above cabinets or create sharp glare if its optics are poor. Several lower-output fixtures may provide better overlap, easier zoning, and fewer deep shadows. More fixtures also mean more connections and cost, so balance smoothness against installation complexity.

Use the lumen calculation as a first pass, then examine photometric files or manufacturer spacing guidance where provided. For demanding design work, the Illuminating Engineering Society offers its official Illuminance Selector for application-specific recommendations. A residential garage owner can also consult a lighting professional when the work is specialized.

Choose color temperature for the room, not the label

Correlated color temperature, or CCT, describes whether white light appears warmer or cooler. Around 4000K often feels neutral and works well in a garage shared with household storage. Around 5000K looks cooler and can feel crisp for detail, though a poor-quality product may appear stark.

CCT does not tell you brightness or color fidelity. Two 4000K fixtures can render wood, paint, wire insulation, and skin differently. If material color matters, compare color quality metrics and sample the actual fixture. In a compact room, the one-car garage workshop layout helps you see how the raised door, vehicle, and bench can divide the lighting zones.

Avoid random mixtures. Warm and cool stripes across one workpiece make finish inspection confusing. If you want a cooler task zone, separate it deliberately and check how the transition feels from the normal standing position.

Color quality matters at the bench

Color rendering index, or CRI, is familiar, but it does not capture every aspect of color appearance. DOE notes that color quality is broader than CCT and that newer tools such as IES TM-30 provide additional information. For ordinary interior lighting, CRI in the 80s is common; work involving finishes, wiring colors, or matching materials often benefits from a well-made higher-fidelity source.

Do not buy by a single CRI number from an untraceable listing. Look for complete manufacturer documentation, consistent model identification, and warranty support. Color consistency between fixtures matters too. A replacement that looks greener than its neighbors can be distracting even if both boxes claim the same CCT.

Inspect familiar objects under a sample: red and blue wire, unfinished wood, painted metal, and your skin. If colors look dull or strange, another fixture is worth trying before the full purchase.

Control glare before adding more output

Glare comes from a bright source in the line of sight, hard reflections, or a large contrast between a brilliant fixture and a dark room. Look up from the normal bench posture. If exposed diodes dominate your view, diffusion, repositioning, or a different fixture may help more than lower wattage.

Glossy floors can mirror ceiling strips. Polished tools and white benchtops can produce their own hot spots. Test a fixture at night, when contrast is strongest. A phone photo may reveal gross unevenness, but your eyes and the work surface are the final judge.

Place light to reveal texture when sanding or inspecting a finish. A source that skims across the surface shows scratches better than one directly overhead. Keep this inspection light controllable so it does not create constant sideways glare.

Select fixtures for the garage environment

A garage may see cold starts, summer heat, humidity, dust, insects, and occasional dampness. Check the fixture’s listed operating temperature, location rating, enclosure, mounting orientation, and compatibility with the intended control. A generic indoor lamp may not be suitable for every unfinished or damp garage condition.

ENERGY STAR’s downlight criteria illustrate the breadth of performance details that credible lighting documentation can address, including light output, color, dimming, and lifetime requirements. Your chosen product need not be a downlight, but the principle holds: a fixture is more than wattage and color temperature.

Use listed equipment and follow the instructions. Hardwired additions, new circuits, or uncertain boxes should be assessed and installed by a qualified electrician under applicable local requirements.

Divide controls around real visits

At minimum, separate general lighting from bench task lighting. A larger garage may benefit from parking, workshop, and storage zones. Put controls where you enter from both the overhead door and the house, or use suitable controls that achieve the same convenience.

Occupancy sensing can be helpful for quick trips, but an aggressive timeout is maddening when you are standing still at a bench. Confirm sensor coverage and provide manual control. Dimmers need compatible fixtures and controls; otherwise flicker, limited range, or buzzing can appear.

Consider what happens during a power outage and whether any path needs separate emergency planning. Do not let decorative smart functions replace a dependable wall control that every household member understands.

Test the finished lighting with actual work

After installation, park the vehicles, open the garage door, load the shelves, and place a project on the bench. Check the floor, steps, wall labels, machine surfaces, and the underside of shelves. Look for alternating bright and dark bands as you move.

Use the workshop aisle guide to walk each route while carrying a box. Light should reveal obstacles without forcing you to stare into a fixture. Clean lenses after dusty work and recheck output as storage changes.

Finish with a short punch list:

No fixture conflicts with the moving door or stored items.
Both hands stay visible at the bench.
Vertical labels can be read without a flashlight.
Glare is controlled from seated and standing positions.
Switches match quick visits and long work sessions.
Model numbers, instructions, and warranty records are saved.

If a corner remains dim, fix that corner. Raising the output of every fixture can make the comfortable zones worse.

Homeowner checking garage workshop light at several work surfaces — Final aiming and switching decisions should follow real tasks, not the appearance of an empty room.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

How should shop lights be arranged in a garage?

Two even rows on either side of the main work line often control shadows better than one center row. Adjust spacing for ceiling height and the fixture’s distribution, then add local task light at benches and machines.

Is one very bright garage light enough for a workshop?

Usually not. A central source creates body shadows and poor vertical light. Several well-spaced ambient fixtures plus a separate task layer give smoother coverage and more useful control.

Should garage workshop lighting be 4000K or 5000K?

Both can work. 4000K usually feels neutral and comfortable in a shared garage. 5000K looks cooler and may appeal in a detail-focused shop. Compare fixtures with similar color quality and sample one in the room.

Do I need high CRI lighting in a garage?

For parking and storage, a credible fixture with ordinary interior color quality may be adequate. Higher-fidelity light is helpful when matching finishes, identifying wire colors, painting, or judging material appearance.

September 9, 2026

How many lumens for garage workshop? A measured starting point

How many lumens for garage workshop? That short question needs a measured starting number, not a magic answer. Lumens describe fixture output. They do not account for a black ceiling, a raised garage door, crowded shelves, narrow beam patterns, dirty lenses, or your body standing between the light and the project. That is why two garages with the same floor area can need different fixtures.

Calculate a general-light budget from area and activity, add local task lighting where fine work happens, and then test the finished room. The goal is even, comfortable visibility. An enormous total printed on a product listing is not useful when most of the light lands on the floor between two cars.

Quick answer

For planning, multiply garage floor area by roughly 20 to 30 lumens per square foot for parking and storage, or 40 to 60 for an active home workshop. Treat those ranges as editorial starting allowances, not code values. Add 15 to 25 percent when dark surfaces, high ceilings, dusty conditions, or uncertain distribution justify it. Then use dedicated task lighting at benches and machines instead of forcing the whole room to support fine detail.

How many lumens for garage workshop: starting allowances

The ranges below are practical planning allowances for fixture output in a residential garage. They are not legal minima, IES application recommendations, or guaranteed surface readings. Use the lower end in a bright, reflective room with broad fixtures and modest tasks. Move upward when the room is dark, the ceiling is high, or workshop activity is frequent.

Garage use	Planning allowance	What it should support	Next step
Parking and basic storage	20 to 30 lumens per sq ft	Walking, unloading, labels, cleanup	Check steps and vertical shelving
Mixed parking and hobby work	30 to 45 lumens per sq ft	Repairs, sorting, occasional bench use	Add a bench task fixture
Active home workshop	40 to 60 lumens per sq ft	General making, setup, broad work areas	Layer task light for detail
Fine inspection zone	Do not size the whole room from this task	Finish defects, precise assembly, color	Use controlled local lighting

Enter your dimensions in the garage lighting calculator for a quick version of the same first-pass estimate.

The simple lumen formula

Measure the interior length and width of the garage floor. Multiply them to get square feet. Then use:

Nominal fixture lumens = floor area x chosen planning allowance

A 20 by 20-foot garage has 400 square feet. At 40 lumens per square foot, the nominal budget is 16,000 lumens. At 60, it is 24,000. That range does not say you need one 24,000-lumen fixture. Four 5,000-lumen fixtures or six lower-output units may distribute the light better, depending on their photometrics and the layout.

If only half the garage is a workshop, do not blindly apply the highest allowance to the whole floor. Give the parking side calm ambient coverage and concentrate separate task lighting over the active zone. Zoning usually produces a more comfortable room and sensible energy use.

Example for a one-car garage workshop

Imagine a 12 by 22-foot one-car garage, or 264 square feet. It contains a side-wall bench but still parks a compact car. Start at 35 to 45 lumens per square foot for the mixed room. The calculation gives 9,240 to 11,880 nominal lumens.

Instead of installing one central high-output lamp, divide that budget among ceiling fixtures that cover the parking aisle, rear storage, and the bench approach. Add a separate diffused task light over the work surface. When the car is absent, both ceiling rows can serve the open project area; when it is present, the bench light still reaches the hands.

Use the one-car garage workshop layout to map the vehicle and bench first. The raised garage door may block ceiling light near the opening, so calculate with the actual fixture locations rather than an empty rectangle.

Homeowner measuring garage length and width for a lighting calculation — Use the active floor area and the real workshop zones, then write down the assumptions behind the calculation.

Example for a two-car shared garage

Now take a 22 by 22-foot garage, which has 484 square feet. At a mixed-use allowance of 35 lumens per square foot, the nominal output is 16,940 lumens. At an active-workshop allowance of 50, it becomes 24,200 lumens.

The higher number makes sense only if much of the room supports regular work. If one bay is parking and the other contains a bench, racks, and a mobile saw, zone the system. Two ambient rows might cover the floor, while a bench light and a controllable machine-area fixture supply detail. This avoids a blinding parking side simply because one bench needs more light.

Keep the fixture count flexible until you check distribution. A product described as 5,000 lumens may send light in a narrow pattern or lose useful output above a cabinet. Manufacturer photometric files and spacing guidance are more informative than dividing the total by fixture count alone.

Add a realistic adjustment factor

The simple area calculation assumes the output reaches useful surfaces reasonably well. Real garages introduce losses. Dark walls absorb light, open rafters scatter it, tall shelves create vertical shadows, dust coats lenses, and fixtures run at different heights.

Adding roughly 15 to 25 percent to the nominal budget is a practical planning adjustment when several of those conditions apply. Label it as an assumption, not a universal rule. For the 16,000-lumen example, a 20 percent adjustment produces 19,200 lumens. That might be achieved by better fixture placement rather than raw output.

The U.S. Department of Energy explains in its LED basics that LED performance includes distribution, color, efficacy, controls, and lifetime. Buying additional lumens cannot repair every weakness. Sometimes painting a dark ceiling or moving a fixture out from behind the open door is the cleaner solution.

Use task lighting instead of overlighting the room

A small workpiece needs light at the hands, not across 500 square feet. Put a diffused fixture above and slightly forward of the bench, or use light from both sides. Machine setup, sharpening, and finish inspection may need their own controlled sources.

Task fixtures let the ambient system remain comfortable for parking and cleanup. They also reduce body shadows. A ceiling source directly behind you may add thousands of lumens to the product total while contributing little at the pencil line.

Plan task lights after the work surfaces are fixed. The table saw clearance guide helps locate feed paths and operating zones; lighting must stay outside moving stock, dust hoses, and safe access. Avoid loose cords near machines and have electrical work performed appropriately.

Bright task lighting over a detailed garage workbench project — Local task light is more efficient than raising the brightness of the entire garage for one small work surface.

Understand lumens, lux, and foot-candles

Lumens measure total emitted light. Lux and foot-candles describe illuminance arriving on a surface. One foot-candle is one lumen per square foot; one lux is one lumen per square meter. OSHA’s lighting interpretation explains the foot-candle concept in plain terms.

A room can contain 20,000 fixture lumens while a bench corner remains dim because distribution and obstructions are poor. This is why surface readings are useful after installation. Measure at the bench top, machine table, floor path, and vertical shelf face instead of checking only the point directly under a fixture.

Do not borrow a workplace minimum and call it a residential design target. OSHA’s construction illumination standard applies to the stated construction settings. It is not a recipe for a comfortable home workshop. Application-specific design should come from appropriate guidance or a qualified lighting professional.

Fixture wattage is not a lumen target

Watts describe electrical power, not delivered brightness. Efficient fixtures can produce more lumens per watt than older or poorly designed products. Compare published lumens for the exact fixture and confirm whether the number refers to initial output, delivered fixture output, or an ambiguous collection of LED chips.

Then read operating temperature, color temperature, color quality, dimming, location rating, warranty, and expected lumen maintenance. A cold garage may expose weak drivers. A hot ceiling near the roof can stress another product. Use the fixture within its listed conditions.

Beware of exaggerated marketplace claims. A compact screw-in device described with an implausibly huge lumen number deserves skepticism. Look for traceable manufacturer documentation, model identification, safety listing, and realistic photometric information.

Spread the budget across rows and zones

Convert the total into a preliminary fixture count, then draw the positions. For a 20,000-lumen budget, four fixtures near 5,000 lumens is an easy arithmetic start. Six fixtures around 3,300 lumens might produce smoother overlap in the same room. The better choice depends on distribution, ceiling height, obstructions, switching, and cost.

Keep rows outside the direct line behind the worker. Light vertical walls and storage as well as the floor. Separate parking, workshop, and task controls when the room is large enough to benefit. The garage workshop aisle guide identifies movement paths that should remain visible without glare.

Do not place fixtures where the overhead door can hit them or where future storage will surround them. Preserve access for cleaning, replacement, and driver service.

Verify the room instead of trusting the arithmetic

Once the system is installed, check it at night with vehicles, shelves, and the overhead door in their normal positions. Place a light meter at the actual work plane and record several points. Consumer meters are not laboratory instruments, but repeatable readings can reveal a dark end or a dramatic falloff.

The Illuminating Engineering Society’s Illuminance Selector provides formal application guidance for people who need an established target. For a casual home garage, the practical question is still whether every task can be performed comfortably and clearly.

Check for flicker on low dimmer settings, glare from standing and seated positions, and shadows cast by your own body. Re-aim or relocate local lights before increasing the whole-room output.

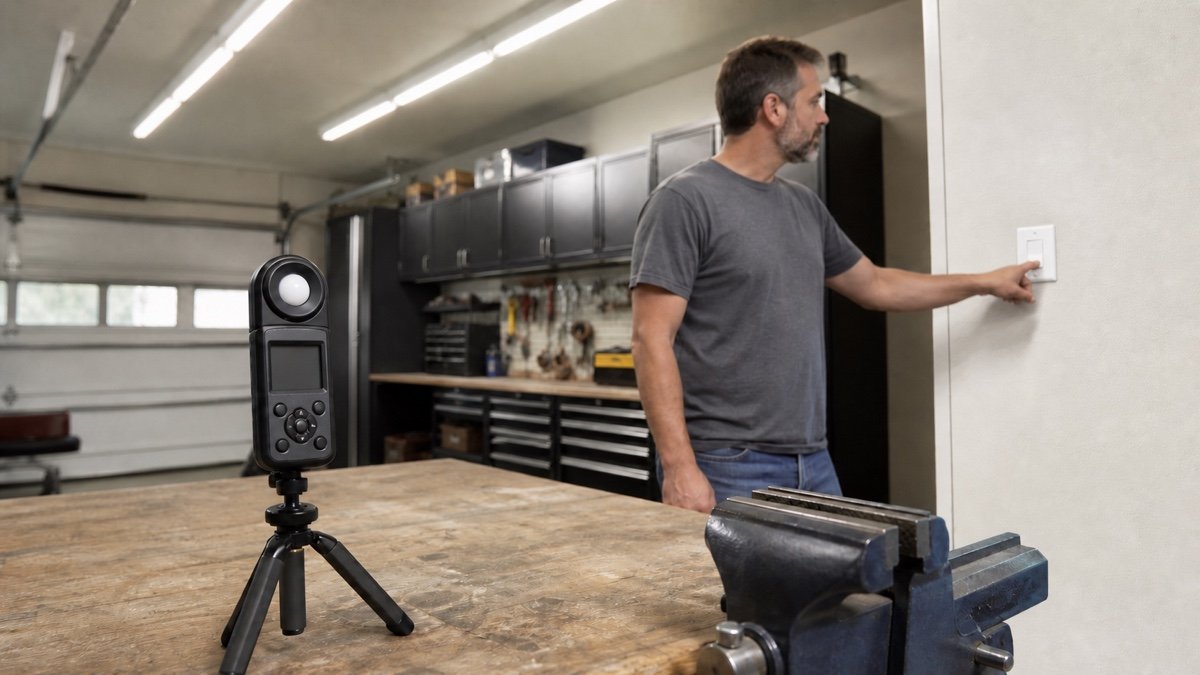

Light meter on a tripod checking illumination at a garage workbench — A meter reading at the task surface can reveal dark zones that the ceiling-level lumen total misses.

Keep a calculation sheet with the assumptions

Write down:

Interior length, width, and calculated area.
The planning allowance chosen for each zone.
Nominal lumens and any adjustment factor.
Fixture model, published lumens, distribution, CCT, and color quality.
Ceiling height and row spacing.
Task-light locations and controls.
Final meter readings or visual problems.

This record prevents confusion when a fixture fails or the workshop moves. It also makes future changes honest. If dark cabinets replace white shelves, you can see why the original result no longer feels the same.

A calculated range is a good buying filter. The finished answer comes from distribution and observation. Spend the last ten percent of your attention after the lights are on, when small position changes can rescue a shadow without adding another fixture.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

How many lumens do I need for a two-car garage workshop?

For a 400 to 500-square-foot active workshop, a starting allowance of 40 to 60 lumens per square foot suggests roughly 16,000 to 30,000 nominal lumens. Use the actual area, then zone the room and add task lights rather than choosing from size alone.

Is 10,000 lumens enough for a garage?

It can be enough for a small, reflective one-car garage used mainly for parking and storage. It may feel inadequate in a dark two-car workshop or when one fixture creates shadows. Area, distribution, surfaces, and tasks decide.

Should I add 20 percent to my garage lumen calculation?

A 15 to 25 percent planning adjustment is reasonable when dark surfaces, high ceilings, dust, or uncertain distribution create likely losses. It is an editorial allowance, not a code rule. Better placement may solve the problem with fewer lumens.

Can a light meter tell me how many fixtures to buy?

A meter measures existing illuminance at a surface. It is most useful for finding weak zones after a sample or installation. Fixture count also depends on distribution, ceiling height, layout, and the target chosen for the task.

September 9, 2026

Best LED Shop Lights for Garage: Five Fixtures Compared by Fit

The best LED shop lights for garage use are the ones that put usable light on the bench, floor, and machine surfaces without turning every polished tool into a glare source. That sounds obvious, yet lumen numbers make it easy to buy one fierce fixture and leave the corners dim. This comparison uses current manufacturer data and official retailer specifications, so treat it as a fit shortlist rather than a lab ranking. It covers five current U.S. fixtures, then shows how to judge quantity, mounting, linking, color, and controls in your own room.

Quick answer

For an ordinary residential garage, begin with several diffused 4-foot fixtures in two rows rather than one bright line. The Feit SHOP/4/840/MM is a practical control-focused option with 5,000 lumens, 4000K light, motion sensing, and linkability. The Braun 59506 is a simpler 5,500-lumen hanging light, while the Braun 56780 supplies 10,000 lumens where a higher ceiling or demanding task warrants it. Pick the layout first. Then confirm fixture rating, mounting method, cord route, switching, and the manufacturer’s linking limit.

Best LED shop lights for garage use at a glance

These are not ranked as universal winners. Each solves a different garage problem, and the published output does not describe beam distribution or glare by itself. Current specifications can change, so use the linked product page and manual as the final reference.

Fixture	Published output	Color	Mounting and controls	Best fit
Feit SHOP/4/840/MM	5,000 lumens, 55 W	4000K	Plug-in, hang or flush mount, motion sensor and remote	Everyday garage with automatic entry lighting
Braun 59506	5,500 lumens, 55 W	Check current listing	Hanging chains, pull chain, linkable	Simple budget-minded rows
Braun 56780	10,000 lumens, 100 W	5000K	Hanging chains, pull chain, linkable	Taller bay or concentrated high-output zone
Commercial Electric 54591142	5,500 lumens, 60 W	4000K	Surface or suspended, pull chain, linkable	Wider fixture body and general work light
Lithonia 1290L	3,300 lumens	Check exact configuration	4-foot integrated shop light	Low-output layer, small bay, or supplemental row

Before laying out fixtures, map the active stations in the garage workshop layout guide. A light directly over an empty aisle does less work than one positioned beside a bench or machine.

How this shortlist was built

We looked for current fixtures with an accessible manufacturer page or official retailer listing, published lumen output, and enough installation information to compare them honestly. The shortlist deliberately includes modest and high-output choices. A 10,000-lumen fixture is not automatically better than a 3,300-lumen one. It may create a hot stripe, pull more power, or feel harsh below a low ceiling.

We also favored ordinary linear shapes. Four-foot fixtures are easier to place in rows, beside garage door tracks, and across a bench than multi-panel screw-in lamps with intense point sources. The models below are examples of useful configurations, not a claim that their LEDs last exactly as long as a laboratory rating in every hot, cold, dusty, or frequently switched garage. Read the environmental rating and warranty terms for the exact SKU.

Feit SHOP/4/840/MM for useful controls without an app

Feit lists the SHOP/4/840/MM at 5,000 lumens, 4000K, 55 watts, and 80 CRI. It can hang or flush mount, and its motion sensor offers several detection and timer settings. A remote gives you manual control without reaching a pull chain. The official Feit product page also describes it as damp-location rated and linkable, with up to six fixtures in the specified arrangement.

This is the most balanced choice here for a garage that doubles as a passage into the house. The sensor can bring up the room while your hands are full, yet 4000K light is less stark than the daylight cast many people associate with basic shop fixtures. Still, motion control can be annoying over a quiet seated task if the timer is set too short. Confirm that the sensor sees the entry path, and keep a convenient manual option.

Four-foot LED shop lights mounted over a garage workbench and tool wall — A broad fixture over the bench reduces the hard shadows created by a single ceiling bulb.

Braun 59506 for a straightforward hanging row

The Braun 59506 is a light, narrow 4-foot hanging fixture. Harbor Freight publishes 5,500 lumens from 55 watts, a 5-foot power cord, included chains and S-hooks, and a limit of eight linked fixtures. The current official Braun listing states a 30,000-hour LED life and ETL certification.

Its appeal is simplicity. Hang a pair over a bench line or create two parallel rows across a garage, then use the pull chain only where it remains reachable. The narrow body leaves more ceiling space around tracks and openers. It also concentrates the luminous surface, so position it where you cannot stare directly into the LEDs while working under a car hood. If you need a fixed wall switch or flush appearance, another fixture may be cleaner.

Braun 56780 when 10,000 lumens genuinely help

The Braun 56780 doubles the nominal output to 10,000 lumens at 100 watts. Its official product page lists 5000K light, a wider 7.43-inch body, included 24-inch chains, and a maximum link of four fixtures. That combination fits a tall bay, a detailed mechanical zone, or a room where one row must cover a broad working area.

Do not buy four merely because they link. At a low residential ceiling, 10,000 lumens concentrated over a polished workbench can feel brutal. Start with a layout calculation, separate general and task lighting when possible, and use the table saw clearance guide to keep suspended fixtures and cords away from the full material path. The heavier fixture also deserves careful mounting into the structure named in its manual.

Linkable hanging LED fixtures arranged in two rows above an open garage bay — Two modest rows usually distribute light more evenly than a high-output strip down the centerline.

Commercial Electric 54591142 for a broader 4000K source

The Commercial Electric 54591142 is listed at 5,500 lumens, 60 watts, and 4000K. Its wider 10-inch housing can soften the visual impression compared with a bare narrow strip. The official retailer page describes surface and suspended mounting, included chains and cord, damp-location suitability, and linkability up to the stated limit.

This model makes sense above a fixed bench where a broader luminous surface matters more than a minimal body. Check the actual mounting kit before choosing its exact ceiling position. A 10-inch housing can conflict with a garage door support or storage rack where a slim strip would pass. If the fixture sits above open drawers or the edge of a wall cabinet, stand at the work position and look up before drilling. That quick sightline test catches a surprising amount of glare.

Lithonia 1290L for a smaller or layered lighting plan

Lithonia lists the 4-foot 1290L at 3,300 lumens. The manufacturer page is sparse, so the exact SKU documentation should settle color, input, cord, mounting parts, and environmental limits before purchase. Its lower output can be useful in a one-car bay, over a secondary bench, or as one of several closely spaced fixtures.

A lower-output light is often easier to live with when the ceiling is low and the walls are pale. More fixtures also let you reduce shadows at the sides of a vehicle or machine. The tradeoff is more mounting points and a more complicated power route. If you are replacing an existing fluorescent body, do not assume a shop light can reuse the old wiring. A plug-in fixture and a hardwired fixture are different installations.

Plan total light, then split it across the room

Multiply room length by width to get square feet, then use a starting target appropriate to the work. The number is only a planning estimate because wall color, fixture distribution, mounting height, and shadows change what reaches the surface. A 22 by 22 foot garage is 484 square feet. Four 5,000-lumen fixtures provide 20,000 initial lumens, or about 41 lumens per square foot before losses. That may feel comfortable for general work in one room and weak in another.

Place the total in two rows and add task lighting at the bench rather than chasing one huge center fixture. Run the positions through the garage workshop aisle clearance guide; you should be able to move a tall project, ladder, or sheet good without striking a low hanging chain. Paint and clean surfaces matter too. A dusty dark ceiling swallows more light than a clean pale one.

Check linking, cords, and switching as one system

A published linking limit is not a suggestion to fill every socket. It is the maximum arrangement for that exact model under its instructions. Never mix a manufacturer’s linking cords with unrelated fixtures. Add the input watts of the planned run, follow the manual, and keep cords away from door hardware, sharp edges, hot surfaces, vehicle roofs, and any place they can be snagged.

Decide what should turn on together. General rows may share a wall control, while a bench light benefits from its own switch. Motion sensing works well for entry light but may switch off during careful stationary work. Smart controls add scheduling, yet an app should not be the only practical way to light a dark garage. Permanent electrical work belongs with a qualified electrician and the requirements that apply at the property.

Close view of a diffused LED shop light above detailed mechanical work — A frosted lens and thoughtful angle can be easier on the eyes during close work.

Look beyond lumens before ordering

Confirm color temperature, CRI, damp or dry location rating, operating temperature, dimming compatibility, warranty, and whether the LEDs or driver can be serviced. Look at the fixture dimensions rather than the familiar “4-foot” label. Width and hanging depth determine whether it clears an open garage door, ceiling rack, or tall cabinet. If the manufacturer supplies photometric files, they are more useful than a marketing photo for a serious layout.

Then check the room at night. Tape the proposed fixture centerlines to the ceiling and stand at the bench, vehicle hood, and floor work area. Note where your head and hands cast shadows. A small movable work light can reveal whether the fixed layout needs another row. Lighting should support the garage storage system, not disappear behind open cabinet doors or illuminate the tops of bins.

The sensible pick for each garage

Choose the Feit motion model if automatic entry lighting and 4000K color suit the room. Choose the Braun 59506 when you want a simple, light, linkable hanging row. The Braun 56780 earns its place where mounting height and demanding work can use 10,000 lumens without glare. Commercial Electric’s broader body suits a fixed bench, while the Lithonia 1290L makes more sense as a modest layer than a brute-force centerpiece.

Whichever you choose, order one fixture first when returns are practical. Temporarily hang it at the intended height, inspect shadows and glare, then copy the successful spacing. That small test tells you more than a lumen race and avoids covering the ceiling with a layout you dislike.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

How many LED shop lights does a two-car garage need?

There is no fixed count. Multiply the room area by a reasonable starting lumen target for your work, then divide that total across several fixtures. Check ceiling height, wall color, beam spread, shadows, and task lighting. A mockup with one temporary fixture is more reliable than choosing by floor area alone.

Is 4000K or 5000K better for a garage?

4000K usually feels neutral and comfortable for a mixed-use garage. 5000K looks cooler and can make detail feel crisp, but some people find it stark at night. Color temperature does not measure brightness or color accuracy. Compare both if the room is also a laundry, entry, or hobby space.

Can I link different brands of LED shop lights?

Do not assume so. Use only the linking cord, connector, and arrangement approved for the exact fixture. Stay within the manufacturer’s unit and electrical limits. A matching plug shape does not prove electrical or mechanical compatibility.

Should garage shop lights hang or mount flush?

Hanging lights are easier to lower over a bench and can avoid an uneven ceiling. Flush fixtures preserve headroom and reduce movement near doors and stored items. Check the exact fixture instructions, structure, cord path, open garage door envelope, and every overhead storage location.

September 7, 2026

4000K vs 5000K garage lighting: choose by comfort and task

The choice between 4000K vs 5000K garage lighting is mostly about the character of the white light, not how much light you get. A 5000K fixture is not automatically brighter than a 4000K fixture. Lumens, distribution, glare control, and surface reflectance decide visibility. Color fidelity decides whether wood, paint, wires, and skin look believable.

For a garage shared with vehicles and household storage, 4000K is the safer neutral default. A well-made 5000K source can feel crisp at a detail bench or in a dedicated workshop, but it can also feel stark late at night. The best decision comes from comparing actual fixtures with similar output and color quality in your room.

Quick answer

Choose 4000K for a balanced, neutral garage that serves parking, storage, repairs, and general projects. Choose 5000K if you genuinely prefer cooler white light and the garage functions mainly as a workshop. Neither CCT guarantees better visibility. Match lumens, beam distribution, CRI or other color-quality data, flicker performance, and diffusion before comparing the Kelvin value. When uncertain, install one 4000K sample and one 5000K sample temporarily and view familiar materials at night.

4000K vs 5000K garage lighting at a glance

Question	4000K	5000K
Visual character	Neutral white	Cooler, daylight-like white
Shared garage comfort	Usually the easier default	Can feel stark to some people
Detail-work impression	Clear without a strongly cool cast	May feel crisp when the fixture is well diffused
Brightness	Depends on lumens and distribution	Depends on lumens and distribution
Color fidelity	Depends on the product, not CCT alone	Depends on the product, not CCT alone
Best buying method	Compare samples with similar output, optics, and color quality

If the room still lacks enough general output, calculate that separately with the garage lighting calculator. Changing from 4000K to 5000K does not repair a poor lumen budget.

CCT describes appearance, not brightness

Correlated color temperature, or CCT, is expressed in kelvins. Lower values generally look warmer; higher values look cooler. The U.S. Department of Energy’s color and spectrum guidance explains that CCT is only one part of how a light source appears.

Two fixtures can both claim 5000K while one produces 4,000 lumens and another produces 8,000. Their optics may send that output in completely different directions. A brighter-looking wall may come from wider distribution or lighter paint, not the cooler color.

Shop by lumens and photometrics for quantity and placement. Shop by CCT for the white-light character. Then evaluate color quality, glare, dimming, flicker, temperature range, and warranty. Keeping those questions separate prevents the Kelvin number from carrying jobs it cannot do.

Why 4000K works in a mixed-use garage

A 4000K garage usually reads as clean and neutral without feeling aggressively blue. That makes it comfortable for unloading a car, finding storage, maintaining bicycles, repairing household items, and working at a bench. It also transitions more gently to typical indoor lighting when the garage connects directly to the house.

Wood tones and warm paint colors often feel more natural under a good 4000K source than under a strongly cool one. That is a preference, not a universal performance fact. A low-quality 4000K fixture can still render colors poorly or show an unpleasant green tint.

Use 4000K as the default when several household members use the garage or when the lights stay on for long evening sessions. Pair it with broad diffusion and local task lighting. Comfort comes from the whole system, not the nominal CCT alone.

Wood and painted metal samples under neutral 4000K garage lighting — A good 4000K fixture often feels balanced in a garage shared by tools, storage, and household tasks.

When 5000K makes sense at a workbench

Some people prefer the cooler appearance of 5000K for mechanical work, cleaning, sorting hardware, or detailed assembly. It can give the room a crisp visual character, especially when surfaces are pale and the fixture has good diffusion. That preference is legitimate if you have seen the light in person.

Cooler light can also feel clinical or tiring at night, particularly when bare diodes sit in the field of view. Do not assume a warehouse-like appearance creates better detail. Shadows, glare, and poor color rendering can hide information even when the room feels intensely white.

A dedicated 5000K task fixture over one bench is a reasonable compromise when the rest of the garage is 4000K. Keep the zones deliberate and view a workpiece at their boundary before committing. Random alternating fixtures often create a patchy ceiling and inconsistent surface color.

Detailed workbench under crisp 5000K garage task lighting — 5000K can feel crisp at a detail bench, but distribution and color quality still determine what the hands can see.

Compare color quality after matching CCT

Color rendering index, or CRI, gives familiar information about color fidelity, but it is not the complete story. DOE’s LED basics notes that lighting performance includes several color and spectral qualities. Newer evaluation methods such as IES TM-30 can add detail when manufacturers publish them.

For ordinary parking and storage, a credible interior fixture with common color quality may be adequate. When you match stains, paint panels, wire colors, or finishes, look for stronger documentation and sample the light on the real material. An advertised high CRI from an unknown model is less reassuring than a traceable specification from a manufacturer that identifies the exact fixture.

Also check consistency. Six lights should not vary visibly from greenish to pinkish. Color stability between fixtures and over time can matter more than choosing 4000K or 5000K on paper.

Do not mistake a cooler source for clearer vision

Visibility depends on contrast, size, glare, adaptation, age, and where the light lands. A cooler source may feel subjectively brighter at the same nominal output, but that sensation does not guarantee better inspection. A dark pencil line under a body shadow remains dark.

Match two sample fixtures as closely as possible for lumens, beam pattern, diffuser, mounting height, and color quality. Switch between them after your eyes adapt. Read a small label, inspect a scratch, sort colored wire, and look at the same wood offcut. Avoid judging from a phone camera, which changes white balance automatically.

Give each sample ten or fifteen minutes at night. The first cool impression can seem energetic, while long-session comfort tells a different story. Ask other regular users, since a garage shared by a household should not be optimized around one quick glance.

Glare can dominate the CCT decision

An exposed high-output LED source can be uncomfortable at either 4000K or 5000K. Look from the parked driver’s seat, the house entry, the bench, and a seated repair position. If bright points remain in the normal line of sight, choose a better diffuser, reposition the fixture, or reduce contrast.

Cooler light may make harsh glare feel more obvious to some users, but fixture design is the larger issue. Deep optics, broad lenses, indirect reflection, and multiple lower-output sources can produce a calmer room than one intense lamp.

Glossy floors and polished car paint reflect source images. Check them before buying the remaining fixtures. A sample that looks fine against bare concrete may become distracting after an epoxy floor or white worktop is installed.

Keep the ceiling consistent and zone the exceptions

A consistent CCT across the ambient ceiling makes the garage feel coherent. If 4000K handles general use, keep that base and add 5000K only where a cooler task source has a clear purpose. Put it on a separate switch. The reverse approach can work in a dedicated cool-white workshop with a warmer inspection area.

Do not alternate 4000K and 5000K fixtures in the same row. The floor may show visible bands, and workpieces can change appearance as they move. Mixing different manufacturers at the same nominal CCT can also create mismatch because CCT tolerances and spectra vary.

Plan fixture positions after choosing the bench and machine zones in the garage workshop layout guide. A well-zoned light should support the task without spilling an abrupt color boundary across the main surface.

Read credible labels and documentation

ENERGY STAR’s downlight criteria recognize nominal CCT values including 4000K and 5000K and pair color requirements with other performance criteria. Your garage fixture may be another product type, but the useful lesson is that CCT belongs inside a broader specification.

Look for exact model number, delivered lumens, CCT tolerance, CRI or richer color data, efficacy, operating temperature, location rating, dimming compatibility, expected lifetime, and warranty. Confirm safety listing and installation conditions. Marketing phrases such as daylight, crystal white, or ultra bright are not substitutes for numbers.

Run a two-fixture sample test

Choose one 4000K and one 5000K fixture with similar lumens, optics, color quality, and size.
Mount or support them safely at the intended height according to instructions.
Test at night with vehicles, shelves, and the garage door in normal positions.
View the bench, floor, storage labels, car paint, wood, wires, and skin.
Check standing, seated, and driver sight lines for glare.
Use each sample for a normal 20-minute task.
Ask every regular user which feels easier, not merely brighter.

Do not energize an improvised hardwired setup. Use approved temporary arrangements or have a qualified electrician handle wiring. Once you choose, buy the same model and specification together where practical so the ceiling has consistent color.

Two sample LED fixtures being compared in a finished garage — Sample one fixture of each CCT at night before ordering a ceiling full of lights.

Choose from the room you have

Pick 4000K when the garage is a household transition space, storage room, parking bay, and occasional shop. Pick 5000K when you have sampled it, prefer the cooler appearance, and spend most garage time on focused work. If opinions are split, a 4000K ambient system with separately controlled task lighting is the least risky compromise.

Check the garage workshop aisle guide while placing fixtures so walking routes stay visible without direct glare. For a compact room, the one-car workshop layout helps account for the open garage door and vehicle shadows.

Finally, remember the hierarchy: enough lumens, useful distribution, controlled glare, good color quality, then preferred CCT. Get the first four wrong and neither Kelvin choice will feel right. Get them right and both can produce an excellent garage.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

Is 5000K brighter than 4000K in a garage?

No. Brightness depends on lumen output, distribution, room surfaces, and where the light lands. 5000K looks cooler and may seem crisper, but a 4000K fixture can produce more usable light.

Is 4000K warm white?

4000K is generally described as neutral white rather than traditional warm white. It looks cooler than common 2700K or 3000K household lamps but warmer than 5000K.

Can I mix 4000K and 5000K lights in one garage?

Yes, but use deliberate zones and separate controls. Keep the ambient ceiling consistent, then add a different CCT only where a task benefits and the color boundary does not cross the work surface.

What is the best color temperature for a woodworking garage?

A good 4000K fixture is a comfortable general choice for wood and long sessions. More important, choose strong color fidelity and low glare, then inspect stains and finishes under the light used for the final judgment.

September 6, 2026

Garage Tool Storage Guide: Put Every Tool Near Its Work

A garage tool storage guide should begin with the work, not a wall full of matching bins. Put the tools for tire service near the parking bay. Keep measuring and marking tools at the bench. Give portable kits a clear landing place when they come home. This approach may look less showroom-perfect, but it saves steps and makes missing tools obvious. The plan below sorts hand tools, power tools, hardware, batteries, long tools, and mobile cases by frequency, weight, and the route each one takes during a normal project.

Quick answer

Sort tools into daily, monthly, and occasional use. Store daily hand tools between knee and shoulder height near their work zone. Put dense tools low in drawers, portable kits on shelves that fit their cases, and long tools on rated wall hardware away from doors and vehicles. Measure the tallest and widest tool before buying drawers. Keep batteries dry and clean, follow each battery manual, and do not treat a charging cabinet as fire protection unless the manufacturer explicitly designed it for that purpose.

Garage tool storage guide by tool type

No single container handles a whole workshop well. Drawers are excellent for shallow, dense tools. Open wall storage keeps familiar hand tools visible. Cases protect tools that leave the garage. Cabinets keep dust off items used less often. Start with this division, then adjust for children, moisture, theft concerns, and the jobs you repeat.

Tool group	Best first home	Placement	Main check
Sockets, wrenches, pliers	Shallow labeled drawers	Beside mechanical work	Open drawer clears car and stool
Measuring and marking tools	Protected shallow drawer or cabinet	At the clean bench	No abrasive dust or loose pile
Cordless tools	Drawer, shelf, or fitted case	Near charging area	Tool fits with battery removed if required
Fasteners and small parts	Small bins or drawer organizers	Eye level near assembly	Labels visible and bins cannot spill
Long tools	Rated hooks or floor rack	Near outdoor door	Head, vehicle, and door clearance
Jobsite cases	Measured shelf or mobile stack	Near exit route	Handles and latches remain reachable

The broader garage storage systems guide helps place these tool homes beside household and seasonal storage.

Map the project route before buying organizers

Choose three recurring jobs. For example: bicycle service, household repair, and vehicle maintenance. Walk each job from setup to cleanup and note where tools accumulate. If sockets always land on a rolling cart next to the car, a chest across the garage creates needless travel. If drills leave in a portable case, unpacking them onto a decorative wall wastes time.

Draw a simple floor plan using the method in how to plan garage storage. Mark the bench, parking envelope, doors, outlets, and the place where a mobile cart rests. Tool storage belongs on that map. Leave working surfaces deliberately empty. A bench covered with permanent organizers has become a shelf, and every project will begin by moving someone else’s project.

Use retrieval frequency, not matching colors

Daily tools deserve the easiest reach. Monthly tools can occupy lower drawers or the second row of wall storage. Once-a-year pullers, specialty sockets, and spare jigs can live in labeled cases higher or farther away. Frequency changes, so write labels that can move rather than printing a permanent museum map on day one.

There is a useful exception. Hazardous, sharp, or expensive tools may need locked storage even when used often. Security and child access outrank convenience. Put the key or combination where authorized adults can use it without leaving the cabinet unlocked. Store personal protective equipment near the task that needs it, but keep clean respiratory and eye protection away from dust and overspray.

Choose drawers from tool dimensions

Count drawers only after measuring the tools. A chest with many shallow drawers is excellent for sockets and pliers but hopeless for a tall cordless saw. Lay each tool group on the floor in a single layer and measure the required width, depth, and height. Add room for dividers and your fingers. Then compare those numbers with the manufacturer’s internal drawer dimensions, not the cabinet’s outside width.

Dense tools should sit low. Divide them into modest groups so one drawer does not consume its full rating before the rest of the cabinet is loaded. A nonslip liner reduces movement but does not raise capacity. If you need help choosing the furniture around those drawers, compare the storage and work surface in the garage workbench buying guide.

Shallow tool drawers organized by task with sockets, pliers, and measuring tools — Shallow drawers let you see small tools without piling them into a deep box.

Build wall storage around structure and published capacity

Wall systems keep daily tools visible, but the mounting surface and fasteners carry the load. Milwaukee lists its PACKOUT Compact Wall Plate at 50 pounds in a shop, while the Large Wall Plate is listed at 150 pounds. The manufacturer page and the exact installation manual matter because plate size, substrate, fasteners, and mounting context change the rating.

Do not transfer a capacity from one plate or hook to another. Include the organizer, case, tool, and attachments in the load. Place heavy cases low enough to lift with control, and keep protruding hooks outside walking and vehicle paths. The existing garage wall storage systems guide compares pegboard, slatwall, and track hardware once you know what the wall needs to hold.

Give power tools a clean landing place

A cordless drill can stand on a shelf, hang from a tool-specific holder, sit in a drawer, or stay in its transport case. The right choice depends on dust, frequency, and whether the tool leaves the garage. Remove loose bits before hanging a tool overhead. Check that the holder supports the tool body without pressing a trigger or damaging a battery interface.

Deep modular drawers can keep kits together, but published capacities vary widely. DEWALT lists the TOUGHSYSTEM 2.0 DXL Deep Drawer Unit at 27.5 pounds per drawer and 55 pounds total. See the official product page for the current configuration. Those numbers are a reminder to weigh the actual kit rather than assuming every large plastic drawer can hold a dense pile of metal tools.

Treat batteries and charging as their own zone

Keep batteries and chargers dry, clean, and easy to inspect. Follow the temperature, ventilation, and storage instructions for each battery platform. Do not bury an operating charger in a closed drawer unless the manufacturer specifically approves that arrangement. Keep the charging area away from grinding sparks, oily rags, flammable finishes, and a bench where metal offcuts can bridge contacts.

Mounting a power strip inside a cabinet does not make the cabinet a listed charging enclosure or fireproof box. Use intact chargers and cords, avoid improvised adapters, and give heat somewhere to go. If an electrical outlet is damaged, loose, or badly placed, solve that problem rather than building an extension-cord maze around it.

Cordless drills and batteries stored in a ventilated garage cabinet beside a workbench — Battery storage should be dry, easy to inspect, and separated from grinding dust and hot work.

Separate small parts by decision, not by appearance

Fasteners become useful when the label answers the question you ask during a repair. Sort common screws by diameter and length, electrical terminals by type and wire range, and anchors by the wall material they are approved for. Mixing every shiny metal fastener into one bin saves space and wastes the next Saturday afternoon.

Use lidded organizers for parts that travel. Open bins work for high-use items at a fixed assembly station, provided they cannot be knocked into a car path. Keep an intake bin for loose hardware discovered during cleanup. Empty it weekly. This prevents every drawer from developing a mysterious layer of one-off washers and unidentified clips.

Store long tools where their movement makes sense

Rakes, shovels, levels, clamps, and extension poles need more than a hook that carries their static weight. Measure the full sweep as you lift each item on and off. A secure rake can still scratch a vehicle when its handle rotates. Put outdoor tools near the exterior door and shop clamps near the bench, even if that breaks a symmetrical wall display.

Use two support points for long or awkward items when one hook lets them twist. Keep sharp ends covered or turned away from the aisle. Floor racks are often better for tools used by someone who cannot comfortably lift overhead. Recheck fasteners after the first loaded week and at regular cleanups.

Make portable cases part of the garage system

A case needs a home that accepts it without removing the handle, opening a latch, or unloading the stack. Measure the case at its widest projection. Leave enough shelf height to grasp it safely, and put the most frequently carried module between knee and chest height. Heavy boxes belong low.

Modular wall plates and rolling stacks are handy, but confirm every connection in the exact orientation. Milwaukee’s PACKOUT mounting plate manual, for instance, publishes different limits for plate models and mounting contexts. A case that locks to a floor plate may not be approved on a wall in the same arrangement. Follow the manual instead of reasoning from the shape of the cleats.

Portable tool cases staged beneath a wall storage panel in a garage workshop — Portable cases work best when the shelf, cart, and project route all use the same modules.

Reset one zone at a time

Do not empty the whole garage unless you can finish the job. Start with one bench drawer or one four-foot wall section. Remove duplicates and broken tools, group what remains by task, then mock up the new home with cartons and tape. Work from the zone for a week before buying inserts for every drawer.

Take a photo of the successful arrangement. Label only after it proves useful. At the monthly reset, return wandering tools, inspect wall hardware, clean drawer slides, and update the odd-items bin. A tool system earns its floor and wall space by making work easier. If an organizer creates more steps, move it.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

What tools should stay visible on a garage wall?

Keep frequently used hand tools visible when quick access outweighs dust and security concerns. Measuring tools, high-cost tools, and items sensitive to grit often belong in a drawer or cabinet. Heavy tools should not hang high merely to complete a wall display.

Are deep drawers better for power tools?

They are useful when the tool, battery, and accessories fit without stacking into a loose pile. Measure internal height and depth, then compare the full loaded weight with the drawer rating. Shallow drawers are usually better for sockets and pliers because every item remains visible.

Can I charge tool batteries inside a cabinet?

Only if the charger and cabinet arrangement follow the manufacturers’ instructions and the space provides the required conditions. Do not assume a metal cabinet is a fire-rated charging enclosure. Keep chargers clean, dry, ventilated, and away from sparks, flammables, and loose conductive debris.

How often should I reorganize garage tools?

Use a quick monthly reset and a deeper review when projects or tool ownership change. If a tool repeatedly lands somewhere other than its assigned home, the home is probably wrong. Move the storage closer to the work rather than relying on perfect habits.

September 6, 2026

Lumber Storage in Small Garage Spaces: Keep Stock Straight and Reachable

Lumber storage in small garage spaces becomes difficult for one simple reason: wood arrives in several shapes that do not want to share furniture. Eight-foot boards need support along their length. Full sheets need a broad, stable base. Short offcuts multiply until their bin becomes archaeology. Trying to solve all three with one deep shelf usually wastes wall area and makes the useful piece hard to reach. A better system separates the stock by shape, keeps weight close to sound structure, and reserves a clear route from the garage door to the bench or saw.

Quick answer

Store long, dry boards horizontally on a properly rated rack with enough support points to limit sag. Keep full sheet goods low, restrained, and either nearly vertical on a stable cart or flat on a base designed for the load. Use a low divided corral for short pieces. Raise wood off a damp slab, keep rain and direct sun away, and check the rack maker’s capacity and attachment instructions. Leave your longest stock path clear before assigning the wall.

Lumber storage in small garage spaces starts with an inventory

Measure the stock you keep, not the idealized stock you imagine buying. Sort it into long boards, short boards, narrow strips, sheet goods, turning blanks, and genuinely useful offcuts. Record the longest length, widest sheet, thickest bundle, and approximate quantity in each group. Then estimate weight from a reliable supplier or material reference. Wet construction lumber can be considerably heavier than the same boards after drying, so do not size a rack from a light sample.

Measure the room with the same discipline. Our garage measurement guide covers wall width, curb ledges, door tracks, opener hardware, outlets, panels, windows, and vehicle movement. Add the path a full sheet or long board follows from the driveway. A rack can fit perfectly yet fail because a board cannot turn between the garage door and the wall.

Inventory also reveals what to stop storing. Set a maximum offcut length below which pieces go to a project bin, recycling stream, or disposal route. Small garages are not lumberyards. Keeping twenty nearly identical scraps costs more useful access than it saves in material.

Match each stock shape to a storage method

Stock type	Compact storage method	Support priority	Access tradeoff
Long boards and trim	Horizontal wall-mounted cantilever rack	Several level arms under the length	Excellent visibility, but consumes a long wall
Short boards	Low vertical corral with front restraint	Broad floor base and divided bays	Fast sorting, limited to pieces that remain stable
Full plywood or MDF	Low sheet cart or rated vertical panel rack	Wide base, side restraint, suitable casters	Easy selection, but heavy to move when full
Thin strips and molding	Narrow horizontal cubbies or tubes designed for storage	Continuous support for flexible pieces	Compact, but labels and length sorting help
Small offcuts	Shallow open bins near the bench	Keep weight low and edges contained	Convenient until the bin becomes too deep

Use this table to divide the wall into smaller jobs. A horizontal rack can sit above a low sheet cart if the loaded projections, lift path, and total wall load all work. A short-stock corral can tuck beneath the lowest rack arm. The pieces may share a wall, but they should not depend on the same restraint.

The comparison in 18 versus 24 inch garage shelves is helpful for nearby tools and finishes. Lumber itself rarely benefits from a deep general shelf unless the stock is short enough to sit fully supported.

Keep long boards horizontal and supported

Horizontal storage is the calmer choice for long stock in a tight room. It puts board ends in view, lets you remove one piece without lifting an entire vertical bundle, and reduces the risk of a tall board sliding into the aisle. The rack arms must share the load and line up so the stock does not twist around a high support.

Choose support spacing from the rack instructions, stock stiffness, and the quality you need to preserve. Thin trim and flexible molding need closer or nearly continuous support. Thick framing boards tolerate wider spacing, but a visibly sagging board is asking for another arm. Keep the heaviest, thickest stock on lower levels. Put light molding higher, where it is less awkward to lift.

Do not let ends project into a doorway or the normal head path. If the available wall is shorter than the boards, protect the ends and reconsider the room. The garage wall storage systems guide explains the difference between accessory panels and structural storage. A pegboard hook is not a lumber rack simply because a board rests on it.

Long boards supported horizontally on three evenly spaced steel cantilever rack uprights — Several support points reduce sag and make load sharing easier to inspect than one heroic bracket at each end.

Treat rack capacity as a complete system

A capacity statement has meaning only with its span, arm arrangement, fasteners, substrate, and loading instructions. Check whether the manufacturer rates each arm, each level, or the complete rack. Confirm whether the number assumes evenly distributed weight. Concentrating a stack over one arm can overload that point even when the arithmetic for the whole rack looks comfortable.

Attach the uprights exactly as instructed. Find sound framing or use the specified masonry connection. Account for drywall thickness and any wall irregularity that prevents the upright from sitting flat. Do not hide a questionable connection behind more boards. If the wall structure is uncertain, use a freestanding rack designed for lumber and have the site assessed before adding weight.

OSHA’s workplace rule on secure material storage is not a residential building code, but its plain principle is worth borrowing: stacked material should remain stable against sliding or collapse. In a home shop, that means front stops where needed, no climbing on racks, and no board pile that must be caught when one piece is removed.

Store short boards vertically only when they stay controlled

A low vertical corral turns awkward short stock into a readable library. Divide it by length or material, keep the tallest bay against the wall, and add a front rail high enough to retain the pieces. The base should carry the load; the wall connection prevents tipping. Do not hang the full weight from a decorative cabinet side.

Set a maximum length for vertical storage based on stability and ceiling access. A long board that leans far into the room has a large sweep when it slips. Move those pieces to the horizontal rack. Avoid a bin so deep that retrieving one strip requires leaning over sharp ends. Several shallow bays are kinder than one crowded chest.

This is also the moment to be ruthless with offcuts. Keep material you can name a plausible use for, not every rectangle larger than your palm. One bay for hardwood, one for common plywood, and a small tray for test pieces may be enough. Empty the bin on a schedule. If the front rail bows or pieces begin standing in the aisle, the collection has passed its designed capacity.

Short lumber and narrow offcuts sorted upright in a low divided plywood corral — A low corral makes short stock visible and restrained without putting long, unstable pieces on end.

Give sheet goods a broad base and a restraint

Full panels are heavy, flexible, and hard to steer. Store them close to the floor on a base that supports the bottom edge and cannot tip as one sheet is pulled away. A slight lean toward a solid back can be useful when the rack was designed for it. Do not lean sheets loose against drywall, where the stack can slide or trap moisture along the bottom edge.

A mobile sheet cart works when the route is level, wide, and clear. Use a broad wheelbase, appropriately rated casters, accessible brakes, and side rails that contain the stack. Park it against a wall so it cannot wander. Before building or buying, tape the loaded footprint and try the turn from the garage door. The cart grows difficult quickly as panels accumulate.

For a fixed shop, a low vertical rack may feel steadier. Flat storage protects sheet shape well but consumes a large footprint and encourages people to pile unrelated objects on top. Pick based on how often you use full sheets and whether you can safely extract the bottom panel. No layout eliminates the weight; it only changes when you handle it.

Full plywood sheets secured on edge in a low rolling cart beside a clear garage route — A broad base and side restraints matter more than a tiny footprint when several heavy panels travel together.

Protect wood from slab moisture and weather swings

Keep lumber away from liquid water and raise it off the concrete. The USDA Forest Products Laboratory’s Wood Handbook chapter on drying and moisture control recommends protecting stock from precipitation and spray. It also explains that storage conditions should reflect the wood’s intended use and moisture requirements.

Dry framing lumber and plywood may tolerate solid piling in a protected shed under the conditions discussed by the handbook. Green or rewetted stock needs airflow and stickered stacking. Furniture parts, flooring, and machined stock are more sensitive to uncontrolled humidity. In a garage, the practical lesson is to identify what you bought. Do not seal wet lumber into a tight pile and expect it to behave like kiln-dried cabinet stock.

Use a moisture meter as a comparative tool if the project demands it, and follow the meter instructions for species and temperature correction. Watch exterior walls and garage corners for condensation or leaks. A dehumidifier can help in a reasonably enclosed space, but it is not a substitute for fixing water entry. Leave inspection access around the rack so dampness does not stay hidden.

Build the lumber path into the workshop layout

Stand at the garage opening with an imaginary eight-foot board. Trace its trip to storage, then from storage to the saw. Include the turning arc and the length needed beyond the tool. The rack should face the easiest direction of travel. A beautiful rack on the wrong wall makes every project a furniture-moving exercise.

Our garage workshop layout guide treats tools as stored and operating envelopes. Lumber needs the same treatment. A table saw’s footprint is small compared with the path of a full sheet. A miter saw needs side support beyond its cabinet. Store long pieces close to the tool that uses them most often, while keeping the stock path away from the parked car.

Protect the daily aisle. The garage workshop aisle clearance guide shows how to test moving carts, open drawers, and carried materials rather than relying on one generic number. If a board has to pass a water heater, electrical panel, or exterior door, do not narrow that access with a permanent rack.

Use a measured wall plan before buying brackets

Draw the wall at scale. Mark every stud or suitable masonry location, the curb, outlets, switches, windows, and the maximum safe reach height. Add rectangles for the loaded rack, sheet cart, and short-stock corral. Then draw the longest board at the angle used to remove it. This small exercise catches conflicts that product dimensions do not show.

Allow hand room between levels and above the top row. A six-inch gap may look efficient until a gloved hand cannot grip the back board. Leave enough vertical room to lift a piece over the front stop without striking the level above. Keep bark edges, splinters, and sharp metal away from the car door path.

Run the rest of the room through the garage storage planning sequence. Lumber expands to fill kindness. Assign a maximum depth or board count to each bay and leave a visible empty zone. That blank space is not wasted. It is the buffer that receives material for the next project without forcing stock onto the floor.

A monthly reset keeps the rack useful

Inspect supports, fasteners, stops, wall surfaces, casters, and the wood itself. Look for sagging arms, loose screws, rust, mold, insects, water staining, or boards that have shifted beyond the end stop. Remove the stock before tightening or repairing a loaded rack. Follow the manufacturer rather than guessing at torque or replacement hardware.

Return boards to the level that matches their length and weight. Pull pieces you no longer need. Sweep or vacuum settled dust without blowing it into the air. Keep finishes, fuels, and solvents away from lumber and dust-producing work. A wood rack is fuel storage as well as material storage, so give ignition sources their own safe area.

The common failure is not structural drama. It is slow loss of access. One temporary board leans against the cart, then another blocks a caster, then the useful sheet sits behind both. Reset the path while the problem takes five minutes. Compact storage succeeds when material can leave without unloading the entire garage first.

Choose the simplest rack that respects the load

Buy a modular wall rack when you have sound structure, recurring long-stock storage, and a wall long enough to support it. Choose a low freestanding rack when wall attachment is uncertain or the system may move. Add a sheet cart only if its loaded route works. Build a short-stock corral when the offcuts are truly worth keeping.

Before checkout, compare total capacity, capacity per arm or level, usable arm depth, upright spacing, fastener requirements, end stops, corrosion protection, warranty, and access to a real manual. Ignore claims such as “heavy duty” without numbers and conditions. If you make the rack yourself, design for the actual loads and substrate, and get qualified help when the structural work exceeds your experience.

The result does not need to resemble a commercial lumber aisle. One long wall, a low panel cart, and a disciplined scrap limit can hold a surprising amount while leaving the garage usable. Straight stock that you can reach is worth more than twice as much wood buried behind a machine.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

Is it better to store lumber vertically or horizontally?

Long boards are usually easier to keep stable and straight on a horizontal rack with several support points. A low vertical corral works well for shorter pieces when it has a broad base and front restraint. Full sheets need their own stable base and side restraint.

Can lumber sit directly on a garage floor?

It is better to raise wood off concrete so small leaks, condensation, and floor washing do not wet the stock. Use supports or a rack designed for the load, keep the area dry, and inspect the bottom layer rather than sealing it out of sight.

How far apart should lumber rack supports be?

There is no single spacing for every board. Follow the rack manufacturer’s layout and capacity instructions, then consider the stiffness and quality needs of your stock. Thin trim needs closer support than thick framing lumber. Add support if boards visibly sag.

How should plywood be stored in a small garage?

Keep full sheets low on a broad, stable base with restraints that prevent sliding or tipping. A rated vertical panel rack or a well-designed rolling cart can work. Test the loaded route and caster capacity before relying on a mobile cart.

September 3, 2026

Shop Vac vs Dust Collector Small Garage Guide: Choose by Tool Port

The shop vac vs dust collector small garage decision starts with the way each machine moves air. A shop vacuum makes high suction through a narrow hose. A traditional dust collector moves a larger volume of air through a wide hose at lower static pressure. Put either one on the wrong tool and the result can be noisy, awkward, and disappointing. Start with the dust port, the material the tool produces, and the hose route you can fit. Then compare filtration, cleanup, electrical load, and storage.

Quick answer

Choose a shop vacuum or certified dust extractor for handheld sanders, routers, track saws, cleanup nozzles, and tools with ports around 1 to 2.5 inches. Choose a traditional dust collector for a stationary planer, jointer, cabinet saw, or other machine designed around a 4-inch or larger port. A small garage often benefits from both: a compact extractor at small-port tools and a mobile collector moved to one chip-producing machine at a time.

Shop vac vs dust collector small garage: the useful distinction

Airflow and pressure work together, but the machines trade one for the other. A wet/dry shop vacuum uses a relatively narrow hose and produces substantial pressure to pull through that restriction. A dust collector uses a larger impeller and hose to move more air through a broad machine hood. The names are casual; the fan curve, filter, and complete connected system decide performance.

Oneida’s Super Dust Deputy documentation draws a practical dividing line. It describes traditional collectors as high-airflow, low-pressure systems, generally above 350 CFM and below 10 inches of water column, while shop vacuums are the opposite, generally below 250 CFM and above 60 inches of water. Those ranges explain why shrinking a 4-inch collector to a tiny sander port does not turn it into a better vacuum.

Read figures as test points, not guarantees at the tool. Hose length, diameter, corrugation, bends, adapters, filter loading, leaks, and the tool hood reduce delivered performance. Manufacturer numbers from different test methods may not be directly comparable.

Match the collector to the port and the debris

Tool or task	Usual port behavior	Better starting system	Reason
Random-orbit sander	Small port, fine dust, narrow hose	Dust extractor or shop vacuum with suitable filter and bag	High pressure works through the small passage
Track saw or compact router	Small to medium port, intermittent chips and dust	Tool-triggered extractor	Short narrow hose and automatic start are convenient
Thickness planer	Large port, high chip volume	Large-hose dust collector sized to the machine manual	Bulk airflow carries chips before the hose plugs
Cabinet or contractor saw	Lower cabinet port, sometimes a second guard port	Dust collector for the large port, possibly a separate small-port solution	The base and blade area create different capture problems
Floor and vehicle cleanup	Hand nozzle, changing restriction, mixed debris	Wet/dry shop vacuum	Portable high suction suits the nozzle

Always begin with the tool manufacturer’s port size and collection recommendation. Do not open, remove, or modify a guard merely to attach a hose. NIOSH found that bottom extraction alone often controlled table-saw dust poorly and that an added local hood over the blade substantially reduced emissions in its test. The NIOSH engineering control page is a useful reminder that capture location matters as much as the collector.

A shop vacuum handles restriction well

A shop vacuum is compact, readily available, and useful beyond woodworking. It can pull through a narrow tool port, crevice nozzle, or long small-diameter hose. A bag can keep fine dust out of the tank and make disposal cleaner, while a suitable filter addresses the particles that reach it. Neither item should be assumed from the word “vacuum.” Check the exact configuration.

Current specifications show how this class behaves. Shop-Vac’s 12-gallon Contractor Series model lists a maximum 105 CFM and 70 inches of sealed pressure. The company also explains that maximum sealed pressure occurs at zero airflow and that a dirty filter, accessories, and system load change actual performance. That caveat matters more than the peak horsepower label, which Shop-Vac says is a consumer comparison term rather than operating horsepower.

The drawbacks are familiar: loud high-pitched noise, modest tank volume, rapidly loading filters, and limited performance at a large open machine hood. A cyclone separator can keep much bulk debris out of the vacuum filter, but it adds footprint, hose, joints, and another bin to seal.

Unplugged random orbit sander connected to a compact dust extractor with a narrow hose — Small tool ports and long narrow hoses favor a high-pressure vacuum or dust extractor.

A certified dust extractor adds control features

A professional dust extractor is still a high-pressure vacuum, but many models add tool activation, antistatic hose options, automatic filter cleaning, adjustable suction, better bags, and a documented filtration configuration. Those features are useful for sanding and portable tools. They do not make a narrow-hose extractor equivalent to a large-volume collector at every stationary machine.

DeWalt lists its DWV015 at up to 155 CFM and 73 inches of static water lift, plus automatic filter cleaning. This is a current model example, not a ranking or evidence that it fits your tools. Compare its manual with the port, hose, material, and work pattern in your shop.

Read certification language carefully. A HEPA filter sold for a machine does not automatically prove that the complete vacuum is certified for every regulated application. Use the exact filter, bag, pre-separator, hose, and operating procedure specified for the material and rule involved. For unknown, toxic, lead, silica, asbestos, or other hazardous dust, stop and use the applicable professional guidance.

A traditional collector moves chips through a wide hose

A mobile single-stage collector can be a compact answer for one planer, jointer, saw, or router table at a time. It usually has a 4-inch inlet, a large filter bag or canister, and much more collection volume than a shop vacuum. Keep the hose short and full size until the machine connection. Every unnecessary reducer spends the airflow advantage you bought.

Grizzly’s current G8027 one-horsepower collector lists 500 CFM, 2.76 inches maximum static pressure, one 4-inch inlet, and a 2.5-micron filter specification. Grizzly describes it as a point-of-use collector for one average machine at a time. That is an honest model for a small garage: roll the unit close, connect one short hose, and avoid pretending a small fan will support a maze of branches.

A collector that catches chips may still allow fine dust through its filter or around leaks. Look at the filtration specification and complete-system claims, not the size of the bag. A better filter may add resistance, and actual airflow changes as the filter loads. Leave room to remove the lower bag or drum without dismantling the shop.

Table saw cabinet connected to a mobile dust collector by a short four-inch hose — A short large-diameter hose lets a traditional dust collector move much more air at a stationary machine.

Hose diameter and fittings can decide the result

A hose is part of the machine. Long corrugated runs, sharp elbows, undersized adapters, leaky cuffs, and a clogged separator all add resistance. With a shop vacuum, use the tool maker’s recommended hose and keep it as short as the work allows. With a dust collector, preserve the large diameter to the tool and avoid reducing early.

Do not force a random plumbing fitting onto a dust port and call it sealed. A loose cuff can disconnect, while a fitting that blocks a guard or strain-relieves nothing can create a new hazard. Use compatible adapters and clamps, support hose weight, and keep connections accessible for inspection. If static-control components or grounding are specified by the system manufacturer, follow that design rather than inventing a wire scheme from a forum photo.

Plan the hose in the room using our garage workshop layout guide. A theoretically efficient run that crosses the only aisle is a poor installation. A mobile collector often wins because it reduces both hose length and permanent obstruction.

Three dust hose diameters with matching cuffs, reducers, and clamps on a workbench — Every reducer and corrugated hose section adds resistance, which is why the complete path matters more than one advertised number.

Filtration and capture are separate questions

Capture asks whether dust enters the hood. Filtration asks what happens after the air reaches the collector. Strong suction at a sealed small port can capture well, yet a leaking filter can return fine particles to the room. A fine filter cannot repair a hood that misses the dust plume. Inspect the whole path.

OSHA’s wood-dust guidance says local exhaust ventilation should remove dust at or near its source and that hoods should sit as close to the emission source as practical. It also calls for system inspection and maintenance. Although OSHA rules address workplaces, source capture is a sound planning principle for a home shop too.

Do not use a room air cleaner as a substitute for source capture. It may reduce suspended particles that escape, but it cannot pull chips from a planer or stop dust from crossing your breathing zone first. Likewise, a respirator is not a reason to accept a badly connected tool. Use controls in layers and follow current instructions for the material, tool, collector, and personal protective equipment.

Space, power, and noise matter in a shared garage

Measure the stored machine, operating footprint, hose coil, filter-cleaning access, and bin-removal path. A tall bag collector may fit the floor yet hit the garage door track. A shop vacuum may slide under the bench until a cyclone doubles its height. Use the method in the small garage workbench guide to protect knee space and avoid burying serviceable equipment behind cabinets.

Check electrical requirements for both collector and tool. Many tool-triggered extractors limit the connected tool load. A dust collector and planer starting on the same circuit may trip a breaker or exceed the intended setup. Follow both manuals and use a qualified electrician for permanent circuit work. Extension cords are not a substitute for suitable fixed wiring.

Noise changes behavior. If a screaming vacuum makes you skip collection for a quick cut, the system is failing. Compare published sound data where manufacturers provide it, listen to the machine if possible, and place it without blocking cooling airflow. Hearing protection may still be required for the tool and collector together.

The best small-garage setup is often a two-machine kit

For a mixed shop, the most practical arrangement is a compact extractor for sanders, routers, track saws, and cleanup, plus a mobile 4-inch collector for the planer, jointer, and table saw cabinet. Each stays near the tool family it serves. You avoid a permanent duct network and stop asking one fan to work far outside its useful pressure range.

If the budget only allows one, list the hours spent on each tool and the volume of debris it makes. Mostly sanding and portable-tool work points toward an extractor. Regular planing or jointing points toward the large-hose collector, with a separate strategy for cleanup. Someone making occasional small projects with benchtop tools may begin with a well-filtered vacuum and separator, provided the tool manuals support that connection.

Start with measured garage dimensions, then test the parked and operating machine against the daily aisle. If a table saw is part of the plan, preserve the full material path described in the table saw clearance guide. Do not buy a tall collector before checking the door path and ceiling hardware. The machine you cannot position near the tool will spend its life parked and disconnected.

Common buying mistakes

Peak horsepower is a poor shortcut. So is CFM by itself. Compare airflow and pressure at stated conditions, hose size, filter configuration, bin capacity, sound, electrical load, dimensions, and maintenance access. Be suspicious when a listing gives one heroic number without a manual or test context.

Another mistake is building too much duct too soon. Small collectors lose useful performance through long branches, tight elbows, reducers, and open gates. Start with one short connection and observe real capture. Add complexity only after the base system works and the manufacturer supports the design.

Finally, do not treat ordinary wood dust as harmless housekeeping. NIOSH links wood-dust exposure with several adverse health effects and recommends limiting exposure. Capture at the source, maintain the system, clean with a suitable vacuum rather than blowing dust into the air, and deal carefully with unknown or hazardous materials. A clean-looking floor is not proof that the finest particles were controlled.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

Can a shop vacuum replace a dust collector?

It can serve small-port handheld tools and cleanup very well, but it usually cannot move the air volume expected by a stationary machine designed for a 4-inch port. Match the collector to the tool manufacturer’s requirement rather than adapting by convenience alone.

Is a dust extractor different from a shop vacuum?

Both are high-pressure vacuum systems. Many professional extractors add tool activation, automatic filter cleaning, antistatic hose options, documented filter configurations, and better dust bags. The exact features and certifications vary by model, so read the current manual.

Does a cyclone separator improve filtration?

A cyclone can remove much of the bulk debris before it reaches the vacuum filter, which can slow filter loading. It does not replace the final filter, prove HEPA performance, or fix leaks. Use a separator designed for the airflow class and hose size of your system.

Should I use a room air cleaner instead of dust collection?

No. A room air cleaner may reduce particles that escape, but source capture should collect dust where the tool produces it. Use room filtration only as another layer, not as a replacement for a suitable hood, hose, collector, and work practice.

September 2, 2026

Small Garage Dust Collection Layout: Short Hoses, Clear Aisles

A small garage dust collection layout succeeds by refusing to imitate a large commercial shop. Long mains, several branches, and a blast gate at every machine look tidy in a diagram, but a modest collector may lose too much performance along the route. In a one-car or shared garage, short hoses and mobile equipment are often the more honest design. Put capture close to the tool, connect one chip-producing machine at a time, store hoses off the floor, and leave enough room to empty the bin without rebuilding the room.

Quick answer

Group tools by port size and dust behavior. Park a high-pressure vacuum or extractor near small-port tools, and roll a large-hose collector to the planer, jointer, or saw it serves. Keep hoses short, avoid early reducers and tight bends, and capture dust at the factory hood or approved guard. Protect the walking aisle, check electrical loads, and reserve straight-out access for the collection drum and filter.

Small garage dust collection layout: map dust sources first

List every task that creates dust or chips. Include handheld sanding, routing, track-saw work, table-saw cuts, planing, jointing, miter cuts, sweeping, and vehicle cleanup. Record each tool’s dust-port diameter, factory hood, electrical requirement, stored location, and operating location. The manual should tell you what collection connection the maker intended.

Next, mark how often each task happens and what it produces. A planer may run for twenty minutes and fill a bin with chips. A sander may run for two hours while making far less visible but finer dust. That difference argues for separate collection strategies even if both tools fit the same room.

Put those notes on the measured plan from our garage measurement guide. Add the garage door, opener, windows, panels, outlets, service doors, parked vehicle, and the path used to carry long stock. Dust equipment must fit during real work and in its stored position against the wall.

Divide the shop by airflow class, not brand

Tool group	Connection pattern	Practical small-garage layout	Main warning
Sanders, routers, track saws	Small port and narrow hose	Compact extractor near the bench, short tool hose	Do not assume every filter configuration is HEPA
Planer, jointer, table-saw cabinet	4-inch or larger port	Mobile collector moved to one machine	Do not reduce the hose early
Miter saw	Mixed port and open dust plume	Manufacturer connection plus a well-designed close hood where permitted	Do not interfere with guard or saw travel
Floor cleanup	Hand nozzle and variable restriction	Wet/dry vacuum stored near the exit	Do not blow dust across the room
Ambient cleanup	Room air rather than source port	Supplemental room filtration after source capture	It cannot replace collection at the tool

The rule is simple: narrow restrictions need pressure, while open hoods need air volume. One collector can sometimes cover a small set of similar machines, but adapters cannot change the fan it contains. Sort tools by port behavior before buying hose or committing wall space.

Put the collector close to the highest-volume machine

Start with the planer, jointer, or saw that produces the most chips. Give the collector a parked position close enough for one short, gentle hose. If two large-port machines sit nearby, use quick connections and move the hose between them while both are off. A small fan is more likely to perform well through ten uncomplicated feet than through a ceiling loop and several branches.

Grizzly’s current support guidance for its compact G8027 says the 500 CFM unit is intended for one average machine at a time and recommends keeping hose lengths short. It also says the collector is not intended as general room filtration. That model-specific FAQ should not be applied to every collector, but it illustrates a sensible layout for a small unit.

Keep the collector away from the garage door track and the stock path. Do not bury its air inlet or motor cooling openings against a cabinet. If the machine has a tall filter, draw its full height beneath open door hardware. The overhead clearance method is useful even when the storage item is a dust collector.

A mobile cart can replace a permanent duct network

A well-built cart can carry a collector or vacuum, cyclone, hoses, cuffs, and a small adapter drawer. Give it a low center of gravity, rated locking casters, secure components, and a handle that does not become the widest part by surprise. The bin must come out without lifting the upper assembly.

Mobility only helps when the route is clear. Roll the empty cart between its parking spot and each tool. Cross the slab joints, curb, and threshold. Check whether the hose or cord catches a caster. Then mark a parking box on the floor so the cart returns to a location where it cannot drift into a vehicle or door.

The cart in a shared garage should connect after the car moves out, not snake a hose around the bumper. Use the measured scenarios in the one-car garage workshop layout to decide whether shop mode and parking mode overlap at all. A rolling collector is easier to move than a fixed duct, but it still needs a safe home in both modes.

Mobile cyclone dust collection cart parked beside an unplugged benchtop planer and a coiled vacuum hose — A mobile cart can serve several tool families without asking a small collector to pull through a permanent maze.

Source capture begins at the factory hood

Use the tool’s intended port, hood, shroud, and guard. Keep the opening close to where chips or dust leave the work. OSHA’s wood-dust guidance identifies local exhaust ventilation as the primary control and says hoods should sit as close as practical to the emission source. That is workplace guidance, but the physics does not change in a garage.

Do not remove a blade guard or defeat a safety interlock to improve hose access. If capture from a tool is poor, check the manual, clear blockages with the machine safely de-energized, inspect the hose, and ask the manufacturer about approved accessories. A homemade box around a miter saw can obstruct the head, fence, or stock. Test the full operating envelope before adding any enclosure.

NIOSH’s table-saw dust control research found that bottom exhaust alone often missed high-speed dust and that an auxiliary hood over the blade substantially reduced emissions in its laboratory test. The takeaway is not to copy an old research hood blindly. It is to treat upper and lower capture as separate problems and use current approved solutions.

Unplugged thickness planer connected at its dust hood to a nearby collector with a short hose — The shortest useful hose begins at a hood close to the chip source and reaches the collector without a sharp bend.

Route hoses where feet, wheels, and stock do not travel

Keep the active hose inside the tool’s work zone. Run it along a wall or behind the machine when the manual permits, with enough slack for normal movement and no loop underfoot. Store inactive hoses on large-radius hooks so they do not kink. A floor hose across the only exit is not temporary if every cut requires it.

Avoid tight elbows and sudden reductions. Keep large hose at full diameter until the tool connection. Support the weight of a hanging hose so it does not pull on a plastic port. Use compatible cuffs, gates, clamps, and static-control parts specified for the system. Seal leaks in the manner the manufacturer allows; do not wrap a failing fitting in layers of unknown tape and forget it.

Our garage workshop aisle guide treats a hose as a moving obstruction, not a line on a plan. Walk the route carrying a full sheet, push the mobile cart, open every drawer, and simulate the collector connection. If the hose gets crushed under a wheel or forces a sideways step, change the layout.

Plan service space before the filter gets dirty

Draw the bin or bag removal direction. Some drums roll forward; others drop down; fabric bags need room around their clamps. Canister filters may need overhead or side access for cleaning. A transparent collection bin still needs room to unlatch. Leave the straight path the manual expects.

Put spare bags, filters, and approved cleaning tools nearby but outside the dust stream. Keep a lidded disposal container accessible. Empty the collector before the waste becomes too heavy or reaches the maker’s fill limit. Fine dust disposal can release what the system captured, so follow the manual and the material’s precautions.

Inspect ducts, hoses, seals, gates, filters, and collection containers regularly. OSHA specifically calls for maintaining local exhaust systems and checking damaged or loose ductwork. Power down and isolate equipment before service. Never use compressed air to blast accumulated wood dust around the room; OSHA’s fire guidance warns against creating a dust cloud that way.

Cyclone dust collector with clear access to its drum, filter, latches, and unplugged power cord — Service clearance is part of the layout because a filter or bin that is hard to reach will be maintained late.

Check power and automatic-start limits

Map circuits along with hoses. A tool-triggered extractor may have a stated maximum connected-tool load. A planer and dust collector can draw substantial current at startup. Do not assume two nearby receptacles are separate circuits. Consult the manuals and have a qualified electrician evaluate permanent wiring or repeated breaker trips.

Keep cords out of the aisle and away from wet areas. Do not hide extension-cord connections inside cabinets or treat an extension cord as permanent wiring. The collector’s emergency controls should remain visible and reachable from the operator’s normal position. Remote starts are convenient only when you can confirm which gates or hoses are connected and no one is servicing the unit.

Grounding and static-control advice varies with equipment and duct material. Follow the complete system manufacturer’s instructions. Do not add a loose wire inside a hose because a generic diagram online shows one. Dust collection combines moving air, combustible material, electrical equipment, and sometimes plastic components. Use components designed to work together.

Keep dust work away from clean storage and ignition sources

Put sanding and chip-producing tools on the collector side of the room. Keep clean household items, soft goods, and vehicle detailing supplies in closed storage across the aisle. Finishes, solvents, fuel, and battery charging need separate handling according to their labels and equipment instructions.

OSHA’s woodworking fire and explosion guidance notes that fine wood dust can accumulate in unexpected high places and recommends controlling ignition sources, using local exhaust, and separating combustible stock from flammable chemicals. A hobby garage is not an industrial facility, yet the housekeeping lesson is straightforward. Dust on rafters and motors is not harmless decoration.

Vacuum settled dust with equipment and filters suitable for the material. Clean the slab, ledges, door tracks, lights, and cabinet tops. Do not dry sweep or blow a cloud into the driveway. If the project involves silica, lead paint, treated materials, or unknown dust, use the specific control method and professional guidance for that hazard.

Test the layout with one tool at a time

Commission the simplest connection first. Clean the filter, empty the bin, use the correct hose, close unused openings, and connect one tool exactly as the manufacturer intends. Observe whether chips escape at the hood, the hose plugs, the bag inflates normally, or the filter loads unusually fast. Stop if the machine behaves unexpectedly.

Add only one change at a time: a slightly longer hose, an approved separator, a second pickup, or a different filter configuration. That discipline tells you which addition cost performance. A system assembled all at once leaves you guessing whether the problem is the hood, duct, filter, or leak.

Document the final configuration with photos and a short list of compatible cuffs. Mark which collector serves which tool and where the cart parks. Revisit the table-saw stock-path guide before accepting a hose route behind or beside the saw. Dust control should support safe material movement rather than stealing the outfeed area.

A compact layout should be easy to explain

If another adult cannot understand how to connect, start, stop, empty, and park the system after a two-minute explanation, simplify it. One large-hose collector, one small-port extractor, two obvious parking places, and a few compatible adapters can outperform a clever wall of gates that nobody maintains.

Measure before adding future branches. Keep the source hood close, the hose short, the filter appropriate, and the service path open. Capture chips and dust before they cross the breathing zone. Use room filtration only as another layer. Clean the high ledges on a schedule.

The visual test is useful: the aisle should still look like an aisle when the collector is connected. The filter and bin should still look removable. The garage door should still move. If dust control makes the room harder to use, it will eventually be bypassed. A modest system that connects in seconds and parks cleanly has a better chance of running for every job.

Useful products to compare

These links open current Amazon search results. Check the dimensions, manual, mounting hardware, warranty, and current availability for the exact model before you order.

Before you buy or install

Frequently asked questions

Should dust collection hose run overhead in a small garage?

Only if the collector can handle the added length and resistance, the structure supports the installation, and the route clears the garage door, lights, vehicles, and tall stock. A short floor-level mobile connection is often simpler for a modest collector.

Can one dust collector serve every tool?

Sometimes one collector can serve similar tools one at a time. Small-port handheld tools and large-port stationary machines usually need different pressure and airflow characteristics. Match each connection to the tool and collector manuals rather than relying on reducers.

Where should a dust collector sit in a garage?

Place it close to the highest-volume machine while preserving the walking aisle, garage door travel, cooling airflow, electrical access, and bin-removal path. A mobile unit should have a marked parking spot where its casters can lock.

Does ambient air filtration replace source collection?

No. Capture dust at the hood or tool port before it spreads. Ambient filtration may reduce particles that escape, but it cannot collect planer chips or stop the initial plume from crossing the operator’s breathing area.

September 2, 2026
