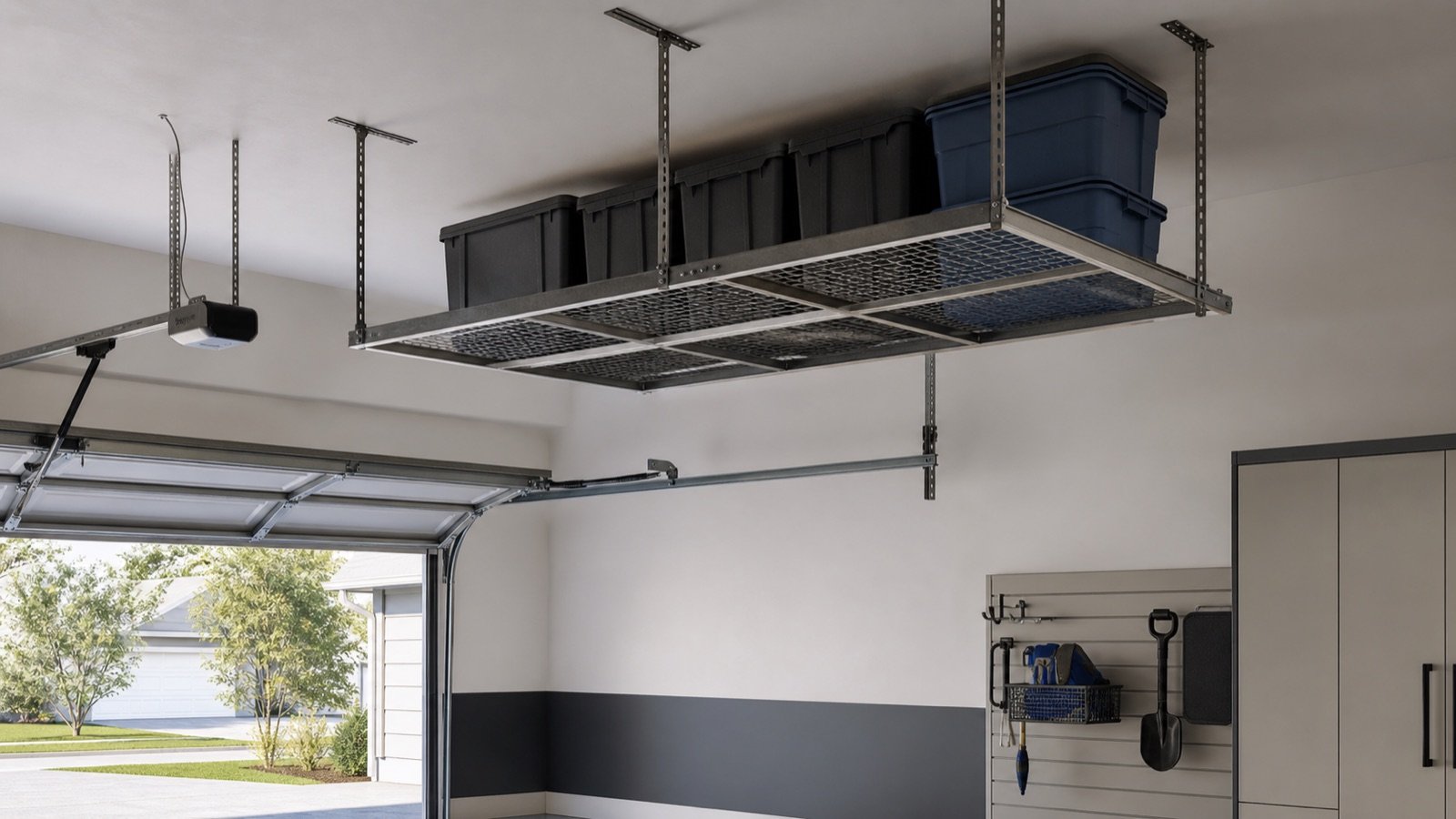

The useful number is not ceiling height. It is the smallest clear opening left after the door, opener, rack frame, tote, and retrieval movement have all taken their space.
Quick answer
Find the lowest obstruction in the proposed rack area. Subtract the platform thickness and selected drop. Then check the rack bottom against the open door, vehicle, walking route, and the way you will lift each tote.
Measure the garage in motion
Record ceiling height at each rack corner, not at one convenient spot. Open and close the garage door while watching the highest panel, curved track section, opener arm, and emergency release. A still photograph of the closed door misses most conflicts.
Measure the vehicle too. Roof rails, an open hatch, and a tall replacement vehicle can change the usable zone.
Use a simple vertical stack
Write the stack from top to bottom: ceiling or obstruction, required mounting space, tote height, handling gap, platform thickness, and clear space below. If any item is unknown, stop. A catalog image cannot supply the missing dimension.
Try the numbers in the clearance calculator, then tape the proposed rack-bottom height on two walls. View it from the driveway and from beside the parked car.
Do not forget the tote opening
A 17 inch tote does not fit comfortably in a 17 inch opening. You need enough room to lift the rim over any lip and slide the tote without scraping the lid. Bulging lids, handles, and wheels add height.
Measure the loaded tote. Flexible bins often grow after they are packed.
Headroom depends on location
A rack over a parked vehicle can sit lower than one crossing an active walking route, but access still matters. Check where a person stands while loading it. The lowest hardware should remain obvious and out of the natural path.
Do not use one universal headroom claim. People, vehicles, and local conditions differ.
Clearance worksheet
| Measurement | Where to take it |
|---|---|
| Ceiling height | At every proposed mounting corner |
| Lowest fixed obstruction | Beam, light, opener, duct, or pipe |
| Highest moving obstruction | Door panel, arm, hatch, or vehicle |
| Rack thickness | Outside frame and deck |
| Tote height | Loaded, including lid and handles |
| Handling gap | Space needed to lift and slide |
When the margin is tight
Change one variable at a time. A shallower tote may recover more space than changing the whole rack. A smaller rack may move into a clearer ceiling bay. If the rack must sit around the garage door, review the above-door guide.
Do not modify hangers, tracks, or structural parts to rescue a poor fit unless the manufacturer specifically permits it.
Check all four corners
Ceilings and garage floors are rarely perfect. A platform that clears at the front left corner may sit closer to a track or vehicle at the rear. Record the limiting height for every support position and use the smallest number in the first calculation.
If the rack permits different post settings, verify that the chosen combination is allowed. Do not use mismatched heights simply because the hardware can be bolted together that way.
Make retrieval part of the drawing
Draw the ladder or step platform on the floor plan. Add the person, open vehicle door, and tote being carried. If the only usable ladder spot puts you beneath the opener or forces a long sideways reach, the rack is in the wrong place.
Repeat the test with the garage in its normal condition. An empty bay can make a poor location look generous.
Useful products to compare
Use these searches to compare current dimensions, ratings, manuals, and availability. Check the exact model before buying.
Before you buy or install
Download the current manual for the exact model. Confirm assembled and packaged dimensions, individual and total load ratings, required clearances, mounting structure, included hardware, warranty, and inspection instructions. Product listings and specifications can change.
Mark the footprint or platform edges in the garage. Operate the vehicle doors and garage door, carry the intended bin through the access route, and check service panels and utilities. Do not improvise around electrical, gas, fire, or structural conditions.
Frequently asked questions
How much gap should be above a tote?
Enough to lift the tote over the platform lip and slide it without forcing the lid. Test the real tote and follow the rack instructions.
Can a rack hang over a car?
It may, if every clearance and installation condition is satisfied. Keep retrieval practical and secure the stored items.
Should I measure with the garage door open?
Measure through the complete travel cycle. The highest conflict may occur while the door is moving, not when fully open.
Last reviewed: July 2026. Verify current product specifications and installation requirements before purchase.
